Brand

SHANTUI

Model

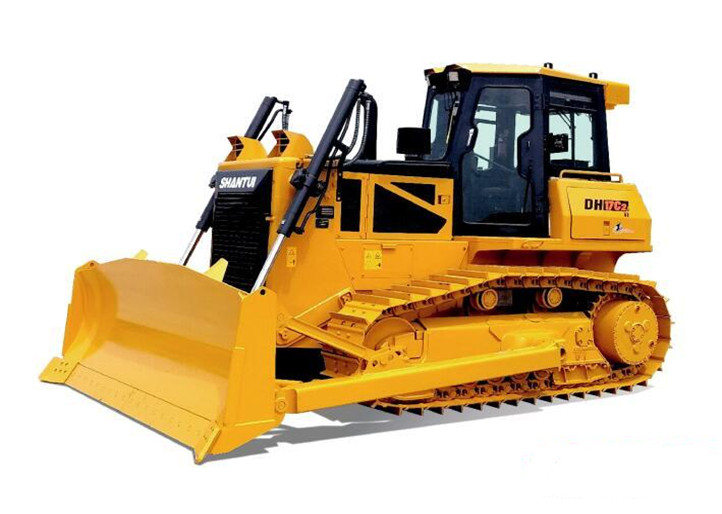

Shantui DH17C2 XL

Engine model

WP10G220E314

Machine working weight(kg)

18340/19241

Displacement(L)

9.726

Ground pressure(kPa)

67.2

Rated power(Kw/rpm)

141、189/1900

Machine overall size(mm)

5250*3420*3080

Speed of advance(km/h)

0～10

Reverse speed(km/h)

0～10

Track center distance(mm)

1880

Track plate width (mm)

510/560/610

Grounding length(mm)

2675

Fuel tank(L)

305

Working hydraulic tank(L)

85

Biggest tilt(mm)

460

Hoisting height(mm)

The depth of the shovel(mm)

475
