Product Parameter

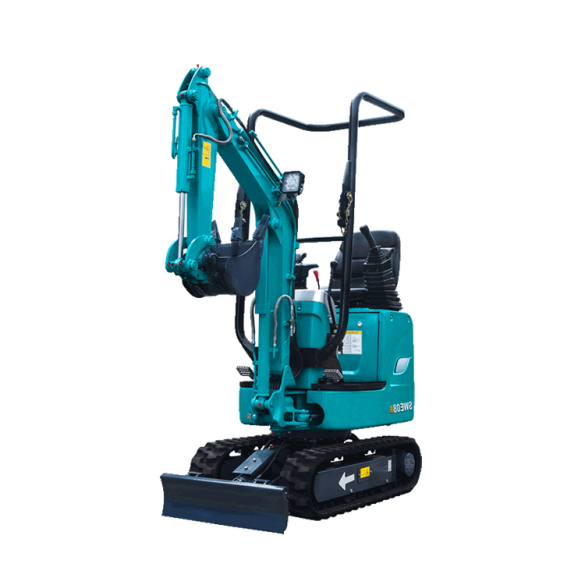

SWE08B Technical Parameters
Type of cab
canopy
Bucket capacity,std.
m³
0.022
Bucket width
kg
1010
Dimensions
Overall length
mm
2640
Overall height
mm
2250
Overall width
mm
750
Ground clearance
mm
131
Engine
Brand
Yanmar
Model
2TNV70-PSU
Displacement
L
0.57
Output
kW/rpm
7.2/2400
Working ranges
Max cutting height
mm
3085
Max loading height
mm
2305
Max digging depth
mm
1825
Max digging reach
mm
3180
Boom swing angle（left/right）
°
73/53
Front swing radius
mm
1221
Tail swing radius
mm
750
Max digging force（Arm）
kN
5.8
Max digging force（Bucket）
kN
9.4
Track
Type
Rubber crawler
Track Width
mm
180
Undercarrige
Track Length
mm
1299
Length to center of Rollers
mm
975
Lenhth to center of track
mm
560/820
Travelling speed（High/Low）
km/h
2.9/1.5
Gradeability
deg
30
Swing speed
rpm
8.2
Ground pressure
kpa
24.5
Dozer size
Width
mm
750/1000
Height
mm
190
Lifting capacity（Height/Depth）
mm
225/225
Hydraulic pumps
Type
3 Gear pump
Displacement
L/min
3*9.6
Hydraulic pressure
Mpa
2*16
Fuel tank capacity
L
10
Hydraulic oil tank capacity
L
9.5

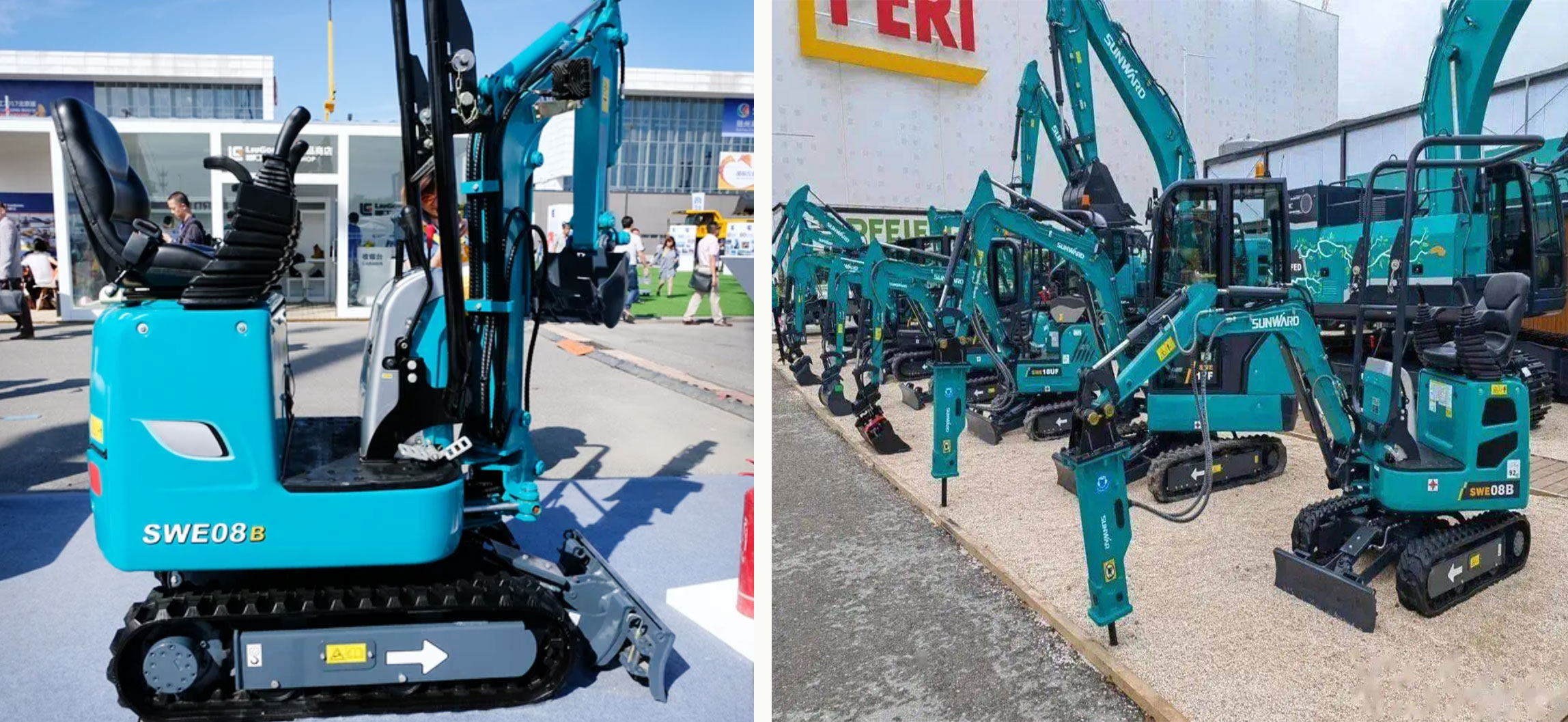

Detail Image
