Condition : Brand New and Used
Brand : SUNWARD
Tonnes :52 tons
Model :SWE600F
Backet Capacity : 3.2m3
Product Parameters
Features and specifications
Specifications
Operating weight
t
51.2-51.8
Bucket capacity
m3
3.2
Engine
Brand
ISUZU
Model
6WG1XKSC-01
Type
Four-stroke, turbocharger, intercooled, direct injection
Power
kW/rpm
300/1800
Maximum torque
Nm/rpm
1932/1400
Displacement
L
15.681
Hydraulic System
Type of main pump
2 variable displacement piston pumps
Maximum flow of main pump
L/min
2x414
System pressure
MPa
31.4/34.3
Type of pilot pump
1 gear pump
Maximum flow of pilot pump
L/min
27
Pressure of pilot pump
MPa
3.9
Performance
Rotating speed
rpm
8.6
Traceling speed
km/h
4.8/3.0
Gradeability
o
35
Track width
mm
600
Ground pressure
kPa
87
Tank Volume
Fuel tank volume
L
850
Hydraulic liquid tank volume
L
520

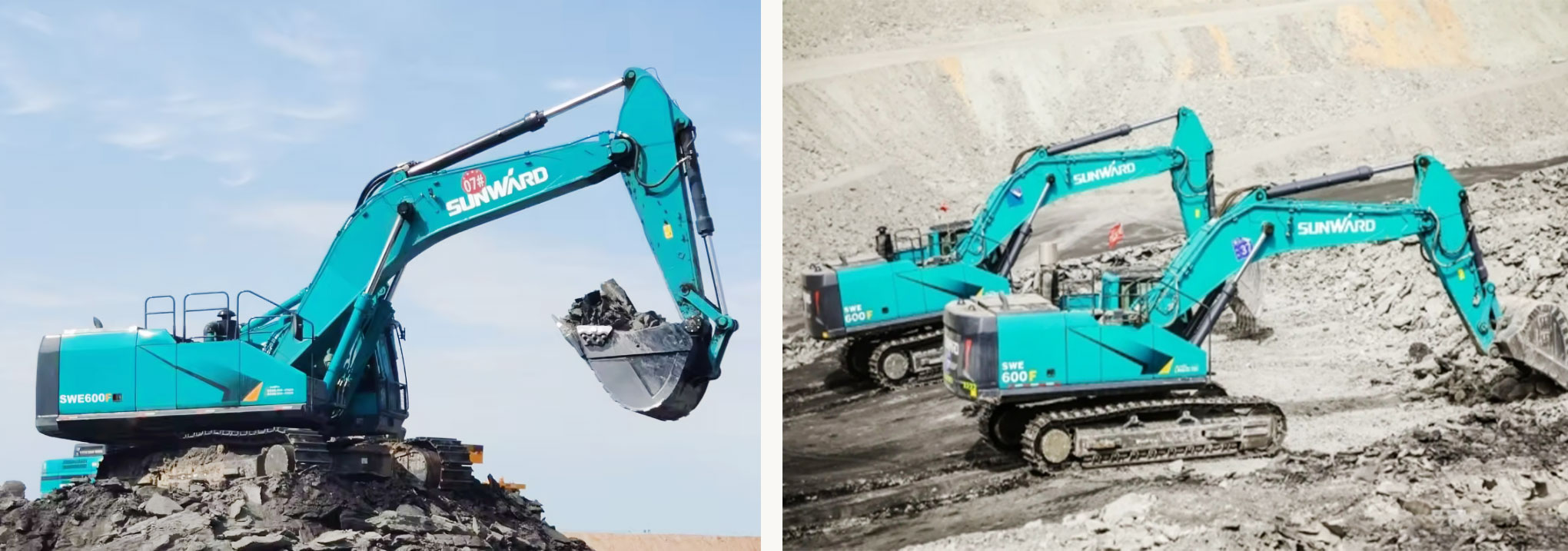

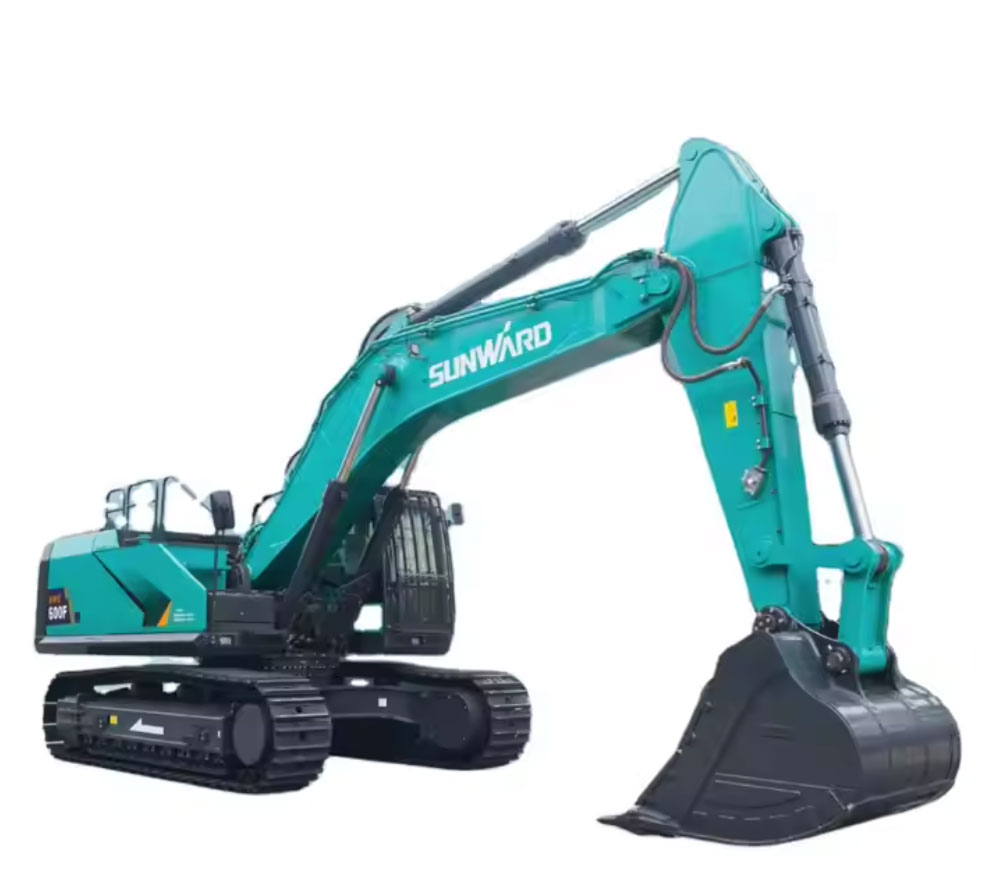

Product Images
