Main Items

Technical Parameters

Model

SXF5140TXFJY160

Overall Dimension

9170*2500*3685mm

Max. Load Weight

13680kgs

Number of the Crew

6 (include driver)

Max. Speed

90km/h

Painting

Red paint of U.S. PPG

Cabin

Structure

Double row cabin with 4 doors

Seats

2+4, with 3-point safety belt, the rear 4 seats with SCBA bracket for 6-9L air cylinders, with storage box under the rear 4 seats

Standardized Sub-frame

Material

High-strength rectangular tube made of special steel

Performance

The liquid tank and the sub-frame are connected by elastic connecting seats

Compartment

Material

High-strength aluminum alloy profiles (Never Rust)

Structure

Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

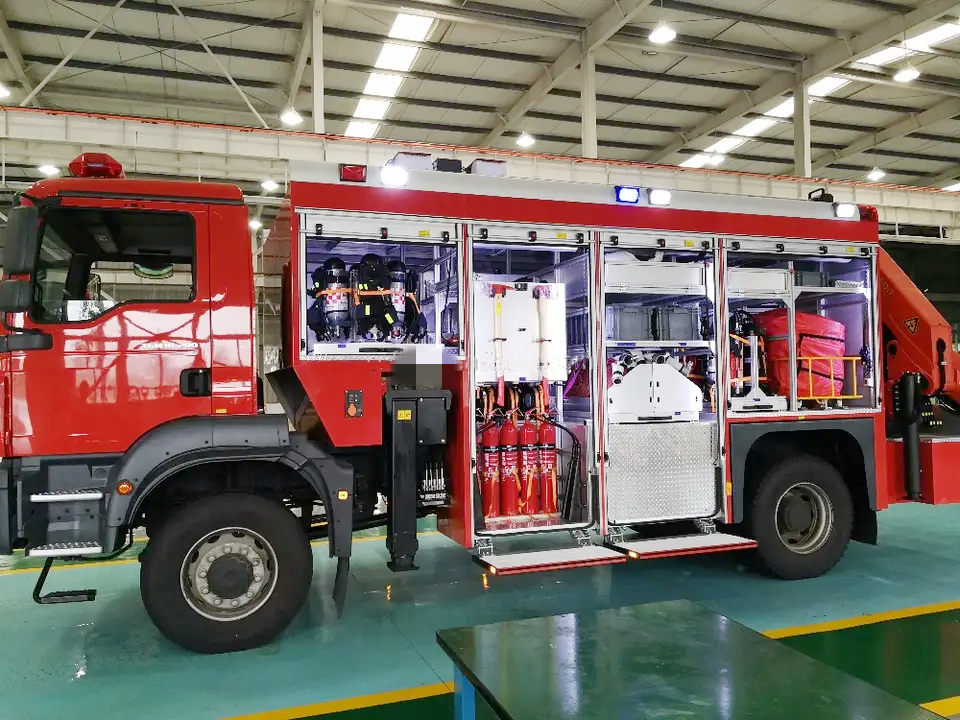

Roller Shutter Door

Material

Aluminum alloy profiles with anodized surface

Structure

With rain-proof groove on the top, lever-type bar, lock handle, pull strap, two-point fixed seat, LED light and sensors.

Foot Pedals

Material

High quality aluminum alloy

Structure

50cm width, bear more than 300kg, anti-slip design, with double lock function. Mounted on the both sides of compartment.

Superstructure Electric Appliance

Warning Light and Siren

Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.

Strobe Light

Mounted on the both sides of the compartment

External Lighting

LED lights are mounted on the both sides of the compartment

Roof Lighting

LED lights are mounted on the inside of the roof

Side Indicator Light

Inline yellow warning light is mounted on the side of the compartment and pedals

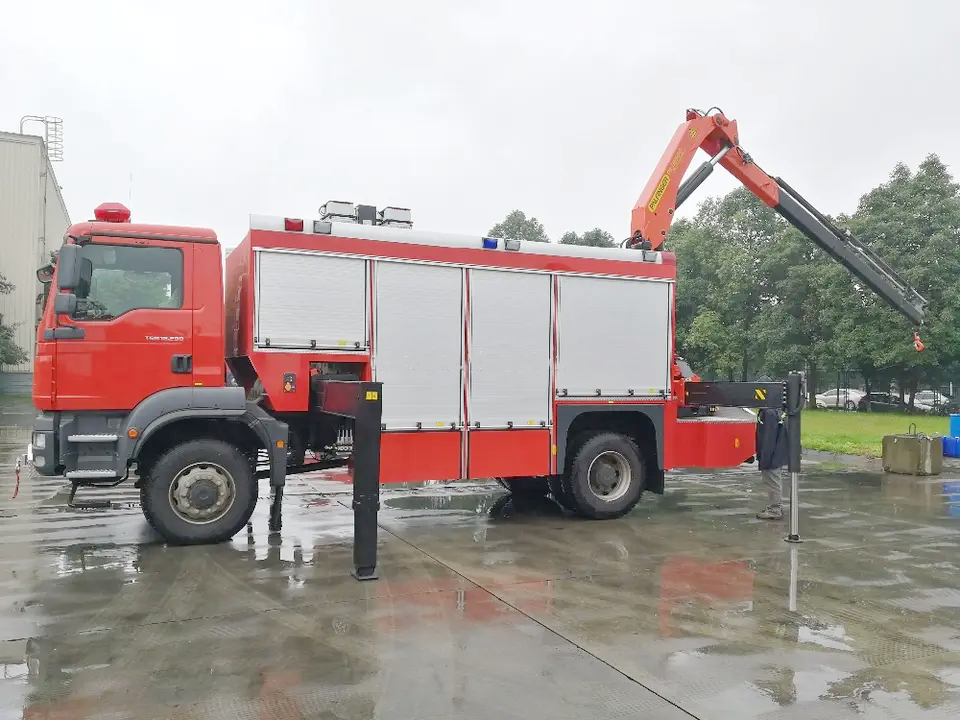

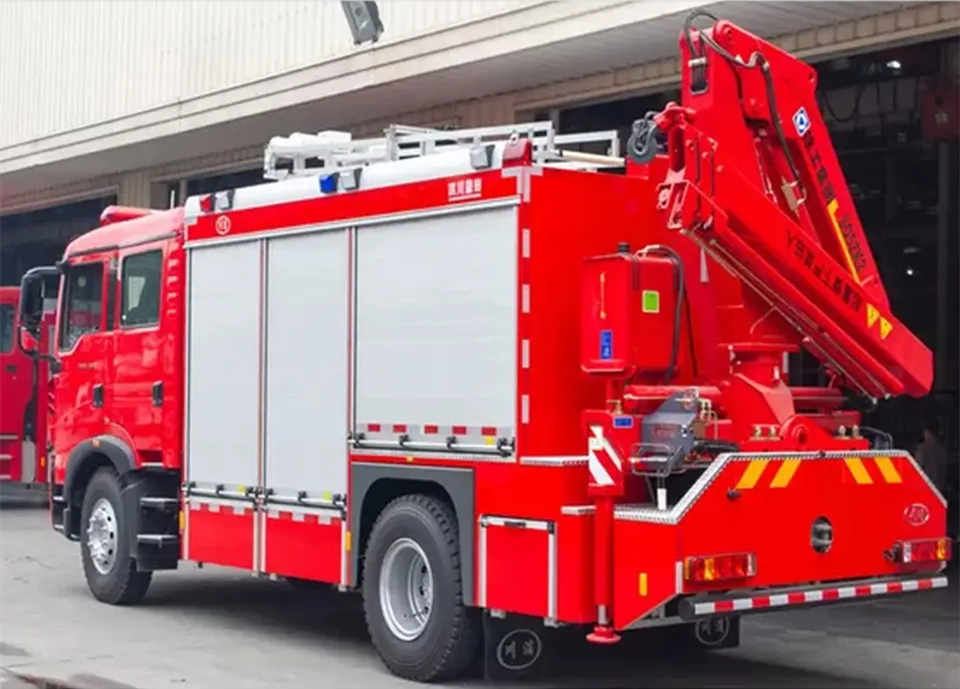

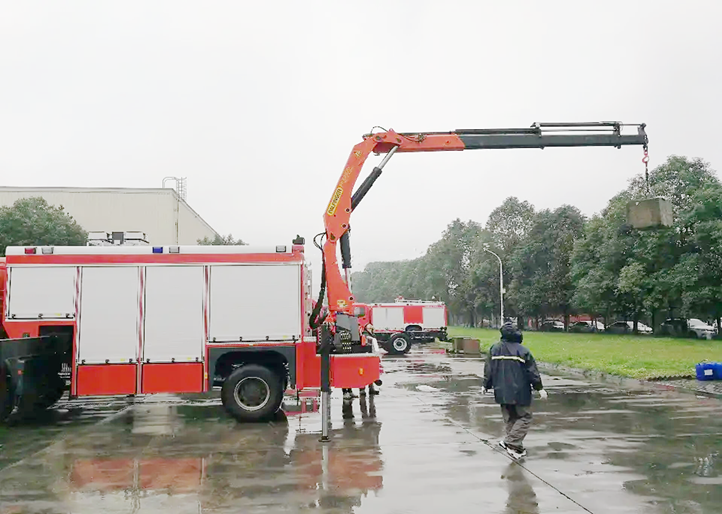

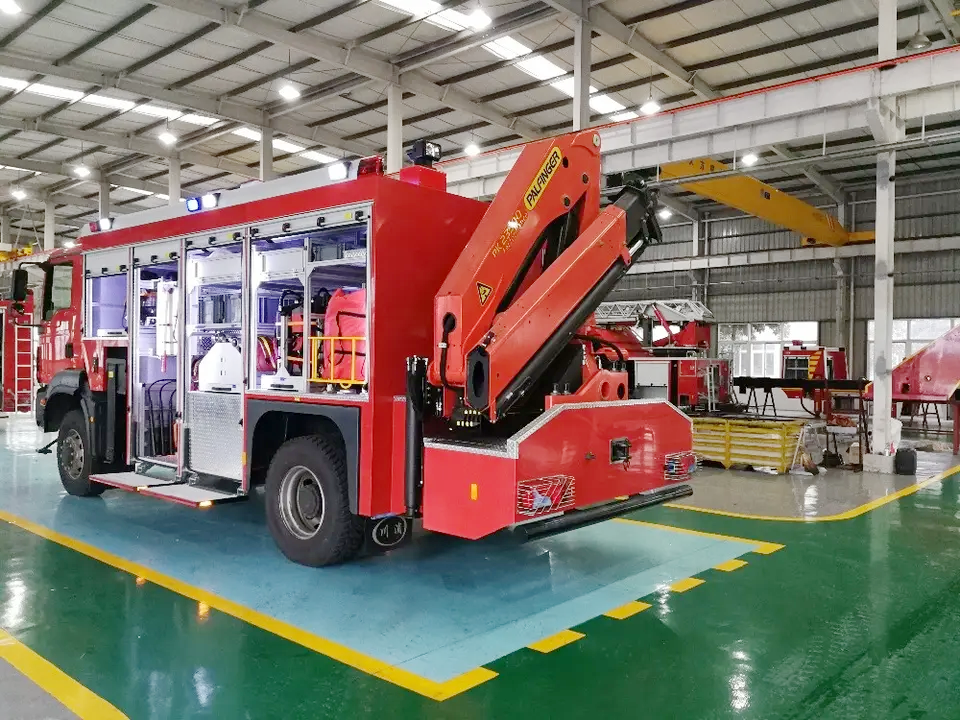

Crane

Brand

Optional

Model

Optional

Max. Lifting Weight

5000kg

Max. Working Weight

10m

Max. Operate Range

8m

Swivel angle

370°

Installation Type

The rear of the vehicle, the longitudinal centerline of the vehicle

Winch

Brand

Optional

Model

Optional

Installation Type

Under the front bumper

Drive Type

Electric

Voltage

24V

Max. Traction

6118kg

Max. Towing length

38m

Generator

Brand

Optional

Model

Optional

Drive Type

Gasoline Generator

Rated Power

8.5Kw

Rated Frequency

50Hz

Rated Voltage

220V

Location

In storage compartment

Telescopic Light

Brand

Optional

Model

Optional

Power

4x1000W

Lamp

Quartz halogen lamp

The Max. Height

7.6m from the ground

Rotation Angle

Horizontal:360° Pitch:120°

Working Voltage

220V

Installation Type

On the roof
