Main Items

Technical Parameters

Model

SXF5341JXFYT32

Overall Dimension

12000×2500×4000mm

Full Load Weight

34000kgs

Number of the Crew

1+1 (include driver)

Max. Speed

90km/h

Capacity

4000L Water & 1000L Foam. PP composite material liquid tank

Fire pump flow rate

100L/s @ 10bar

Fire monitor

5700L/min. flow rate, 70m shoot range

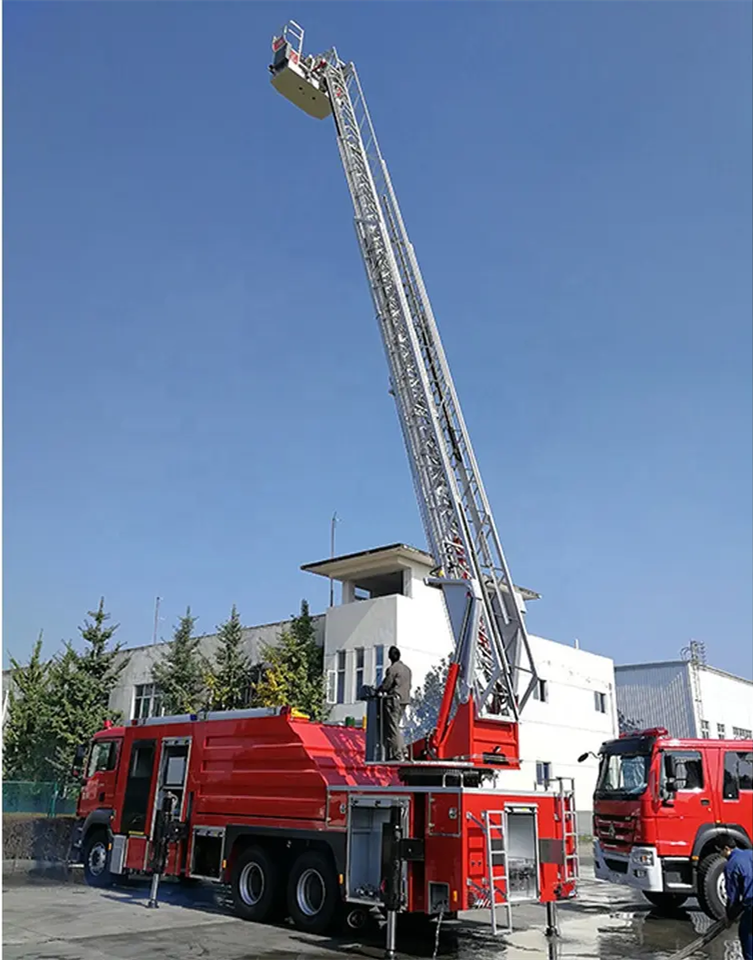

Max. working height

32m

Fire Pump

Brand

CXFIRE

Model

CB10/100

Rated Flow Rate

100L/s @ 10bar

Vacuum Pump

Electric vacuum pump

Priming Manner

Automatic

Suction Height

7m

Priming Time

≤80s

Location

Rear-mounted

Fire Monitor

Brand

Optional

Model

Optional

Flow Rate

950-5700L/min.

Shoot Range

Water ≥ 70 m, Foam ≥ 60 m

Location

On the top of the boom

Control Manner

Remote control

Horizontal Rotation Angle

0°~355°

Pitch Rotation Angle

-45°~120°

Liquid Tank

Capacity

Water 4000L, Foam 1000L

Material

PP composite material and Never Rust

Structure

Two Tank Manhole; One Overflow Device/Pressure Relief Device; Two Liquid Level Indicators; One Foam tank Drain Outlets with Valves; One Water tank Drain Outlets with Valves.

Control Panel

Structure

Each fire extinguishing system is controlled by PLC, and different standardized control modules can be selected. IP56 protection level

Location

Rear pump room
