HOWO Sinotruck Hohan 4X2 5-10t Light Cargo Truck-Products Center-HOWO SINOTRUCK

EMAIL： peter@sinotrukafrica.com

Home > Products > Howo Cargo Truck

Condition: Brand New

Tyre Quantity: 6 tyre

Engine Power: 116hp

Driving Type: 4x2

Capacity: 3ton

Color ：Optional

Product Parameters

SINOTRUK HOWO 4X2 LIGHT CARGO TRUCK SPECIFICATION
Truck Model		ZZ1047D3415C145(Left Hand Drive )
Dimension (LxWxH) (unloaded)mm		5995×2180×2550
Cargo body		4200 x2050x400 mm
Cargo body thickness (mm)		Bottom:3 mm, side:1.5 mm
Approaching angle/ Departure angel (°)		20/18
Overhang (front/rear) (mm)		1160/1475
Wheel base (mm)		3360
Max. Driving speed (km/h)		95
Front/Rear axle loading capacity (kg)		2700+7200
Curb weight (kg)		2455
Gross vehicle weight		4495
Cab	2080 single cab,with A/C
Engine Model	Model	YUNNEI brand,YN4102QBZL, 116hp
	Rated Power(kw/rpm)	85/3000
Clutch	Diaphragm spring clutch,single plate
Transmission	Model	WLY6T46,6F&1R
Brake system	Service brake	Dual circuit air brake
	Parking Brake	Spring energy, compressed air operating on rear wheels
Steering system	Model	Power steering,Adjustable steering wheel. (left hand driving)
Front axle	(2.7T) Forging I-beam,Drum brake.
Rear axle	(7.2T), pressed welding axle housing Drum brake.
Tire	8.25R16 Radial tire 6 pieces with 1 Spare tire.
Electrical system	Type	SINOTRUK CAN bus system with VCO instrument
	Voltage	24V,
	Batteries	2*12V, 120 Ah
	Alternator	28V/35A
	Starter	4.5Kw
	Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light.
Oil Tank	120L fuel tank
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.

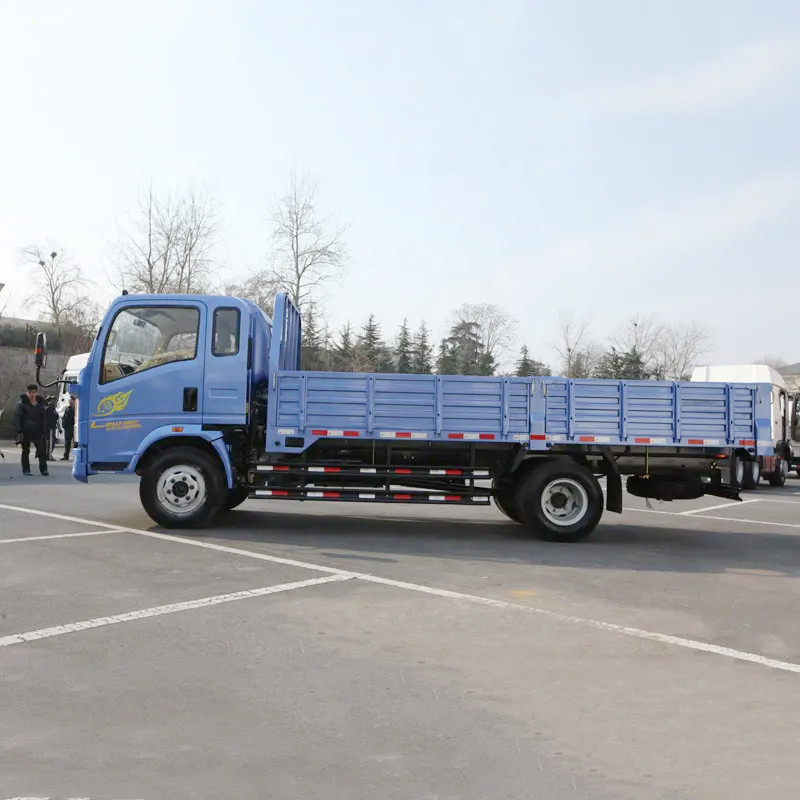

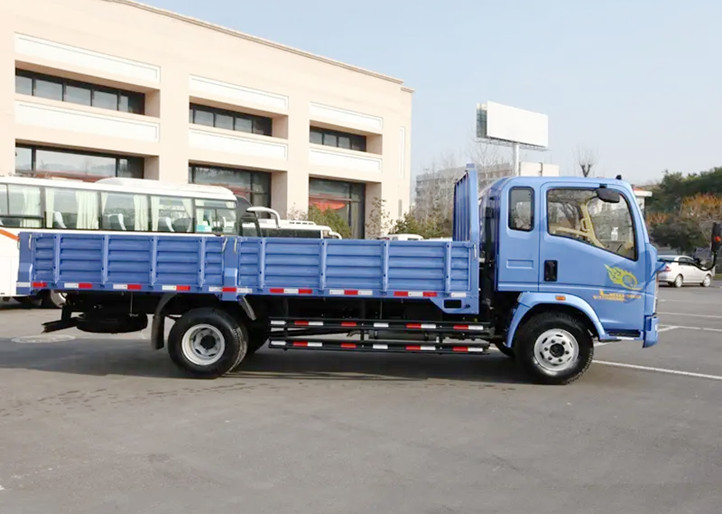

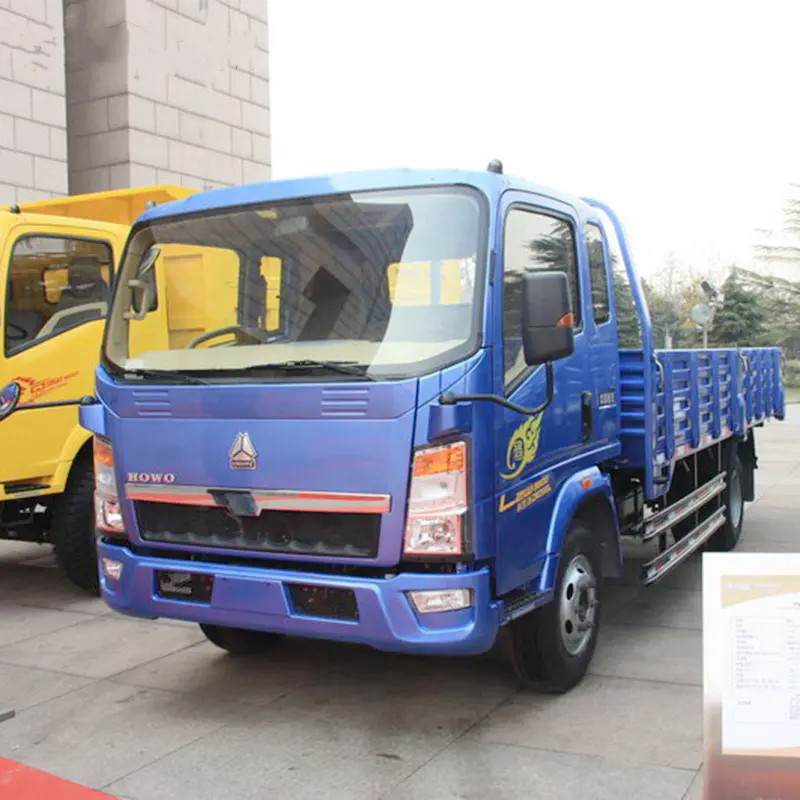

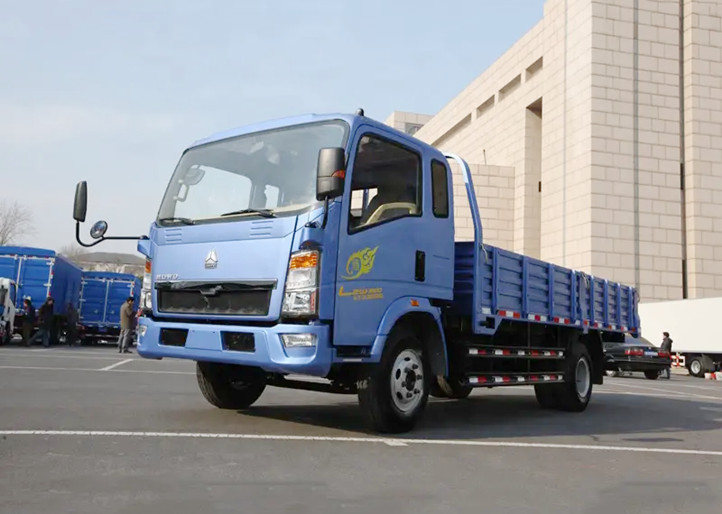

Product Images
