Shape

Elliptical, circular type shape

Payload

Max 70tons

Capacity

35000liter - 72000liter

Compartments

1-9 silos

Tank Material

Aluminum, Alloy Steel, Carbon Steel

Tank Thickness

4mm

Manhole

3 pcs 16", 20" with vent valve

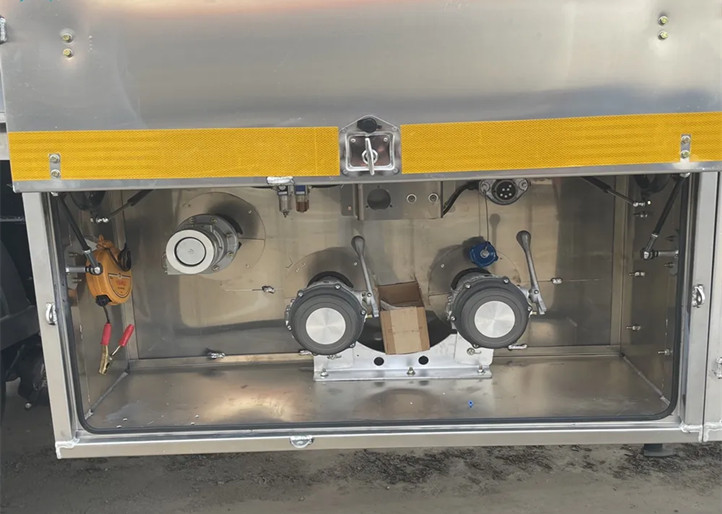

Discharge vale

4" API Adaptor Valve or 3" Spherical Valve

Bottom valve

3", 4" Contral by Pneumatic Block

Handrail

Manual, Pneumatic

Bottom Loading (Optional)

Overfilling, Recovery system

Cat Walk

Aluminum

Chassis

Main Beam

Q345 Carbon steel material

Axles

3 Axles

Suspenssion

Mechanical, Air, Bogie

Landing Gear

28Tons Standard

Brake system

6pcs  Brake Chambers, with Air Reservoir

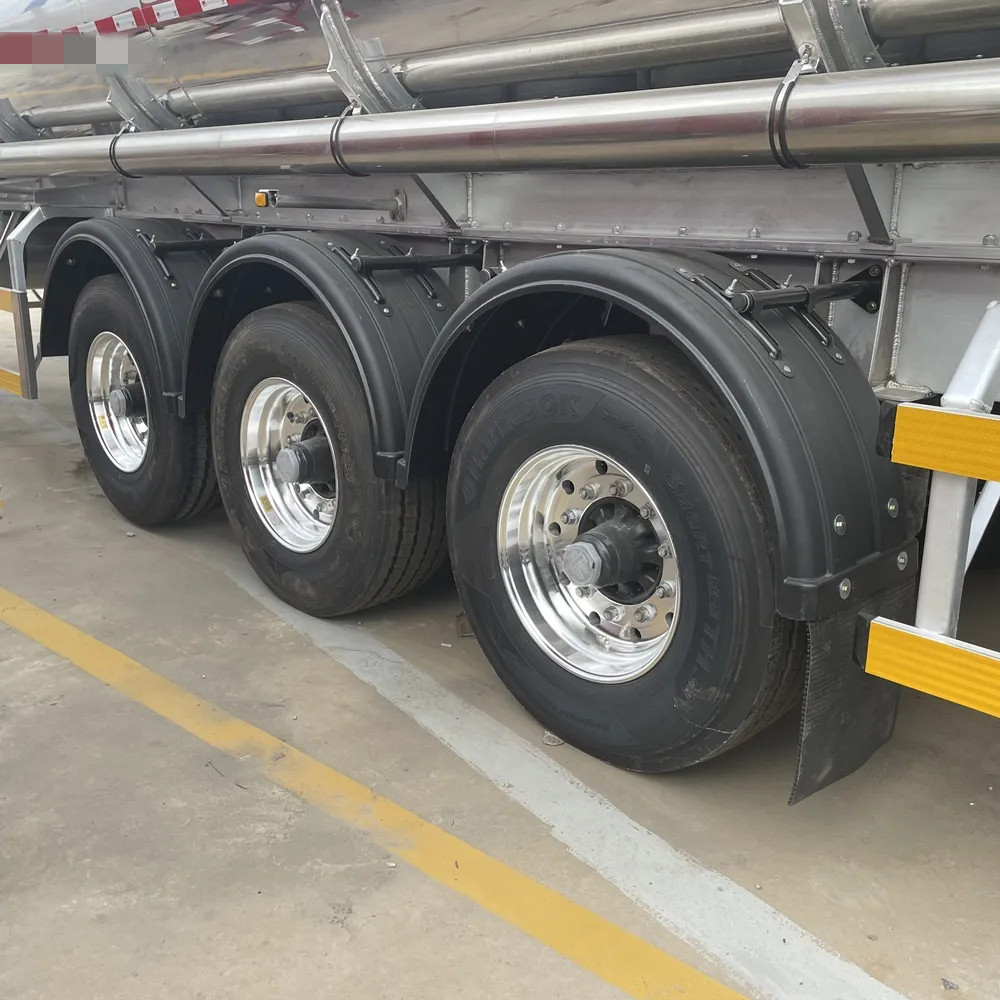

Tire

12R22.5, 315/80R22.5

King Pin

2" or 3.5 "

Any parts fitted could according to clients request.
