Trailer Model

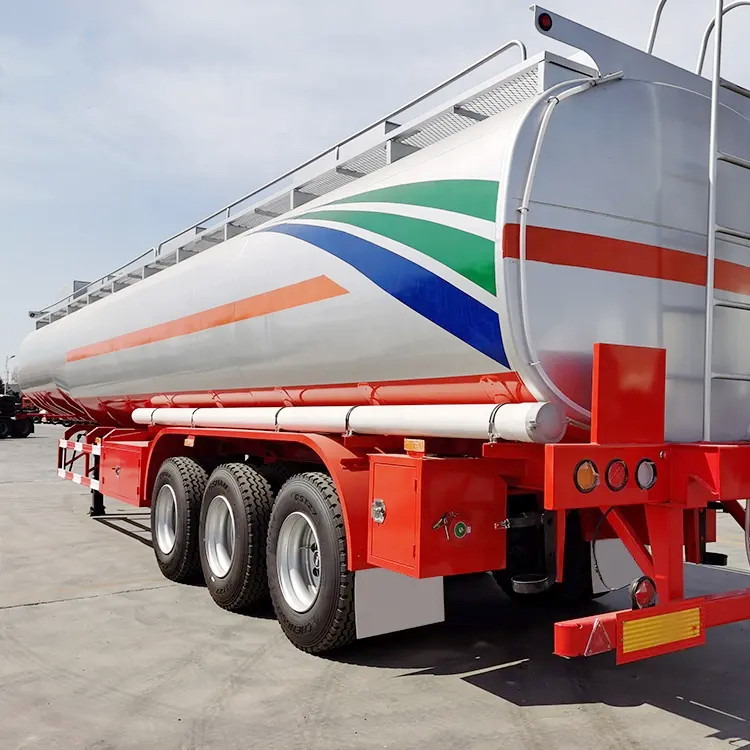

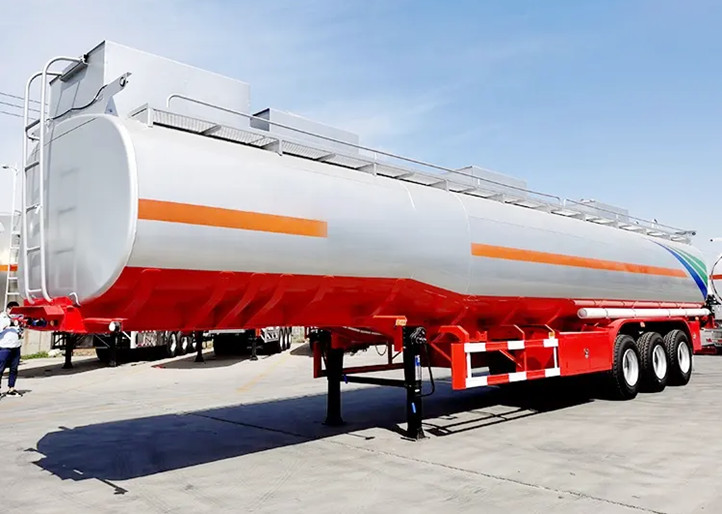

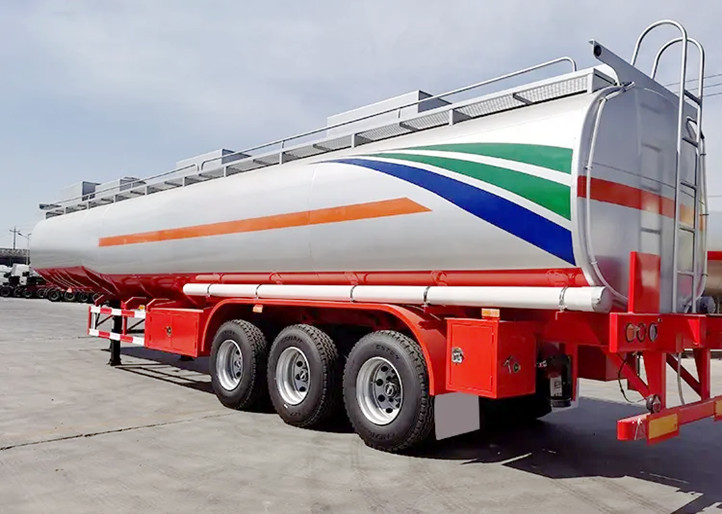

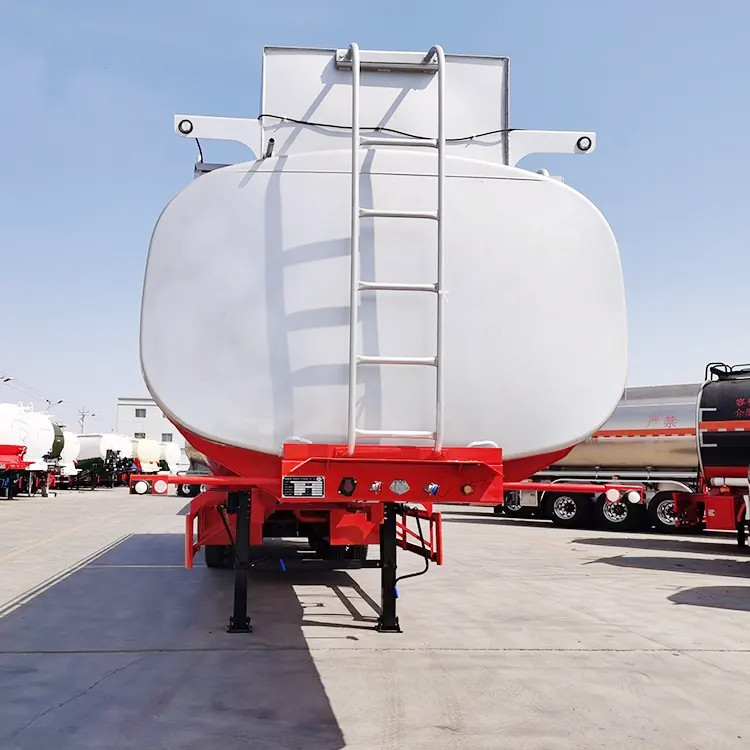

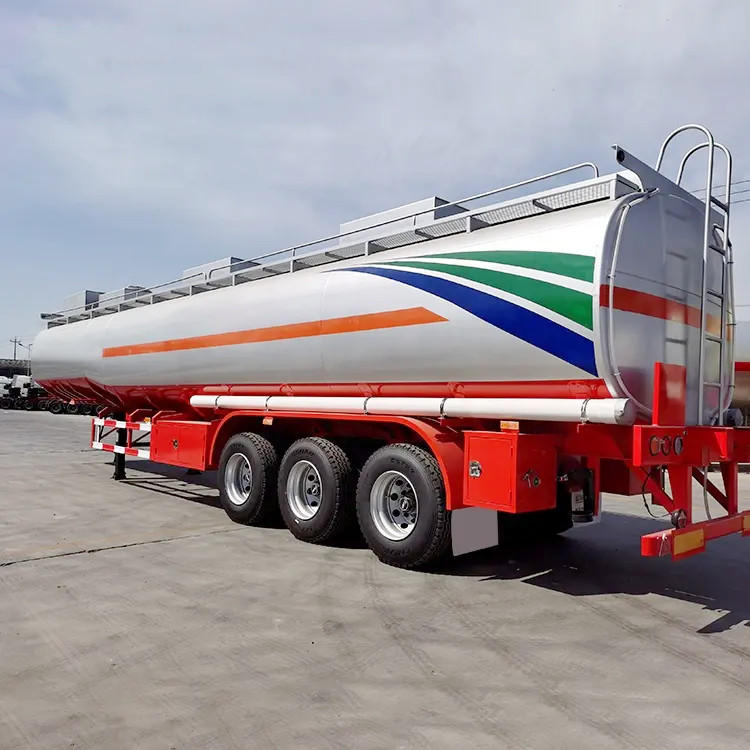

Fuel tank trailer

Overall dimension

11000mm-13000mmX2490mmX3950mm/3800mm-3900mm

Axle

3 Axle BPW/FUWA /4Axle/5Axle

Wheelbase(mm)

6700+1310+1310 or other

Suspension system

Mechanical or air supension (American or German)

Steel Spring

8/8/8, 10/10/10, 12/12/12 pieces per axle

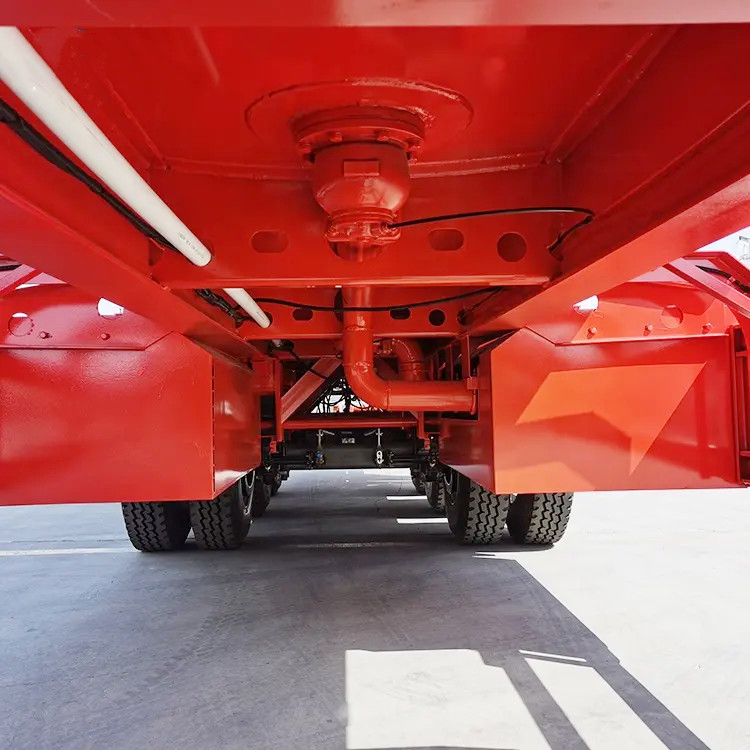

Frame

Height: 450mm-520mm,

upper plate thickness is 16mm-25mm,

middle plate thickness is 8mm-12mm,

down plate thickness is 16mm-25mm;

Heavy duty and extra durability designed;
Opting for high tensile steel Q345B welded by
automatic Submerged-Arc processes Height I beam.

Tanker Body Material

6mm/5mm aluminum

Tire Type

8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20

Rim

6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20/9.0-20

Traction Pin

JOST 2''(50#)/3.5''(90*) changeable

Spare Wheel Bracket

2 sets(Patent type)

Tool Box

2 sets(waterproof type)

Landing Leg

JOST, FUWA or CHINA brand 28T

Brake system

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TAIYUE brand);

One piece of 45L air tanks

Brake air chamber

Six double chamber

Electrical system

1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)

Tail lamp with turn signal, brake light & reflector,side lamp etc.

One set 6-core standard Cable.

Shipping Terms

By bulk cargo carrier, RORO or 40HQ container.
