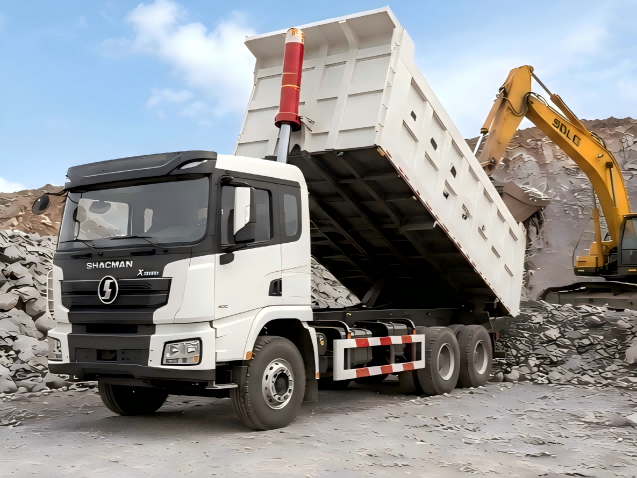

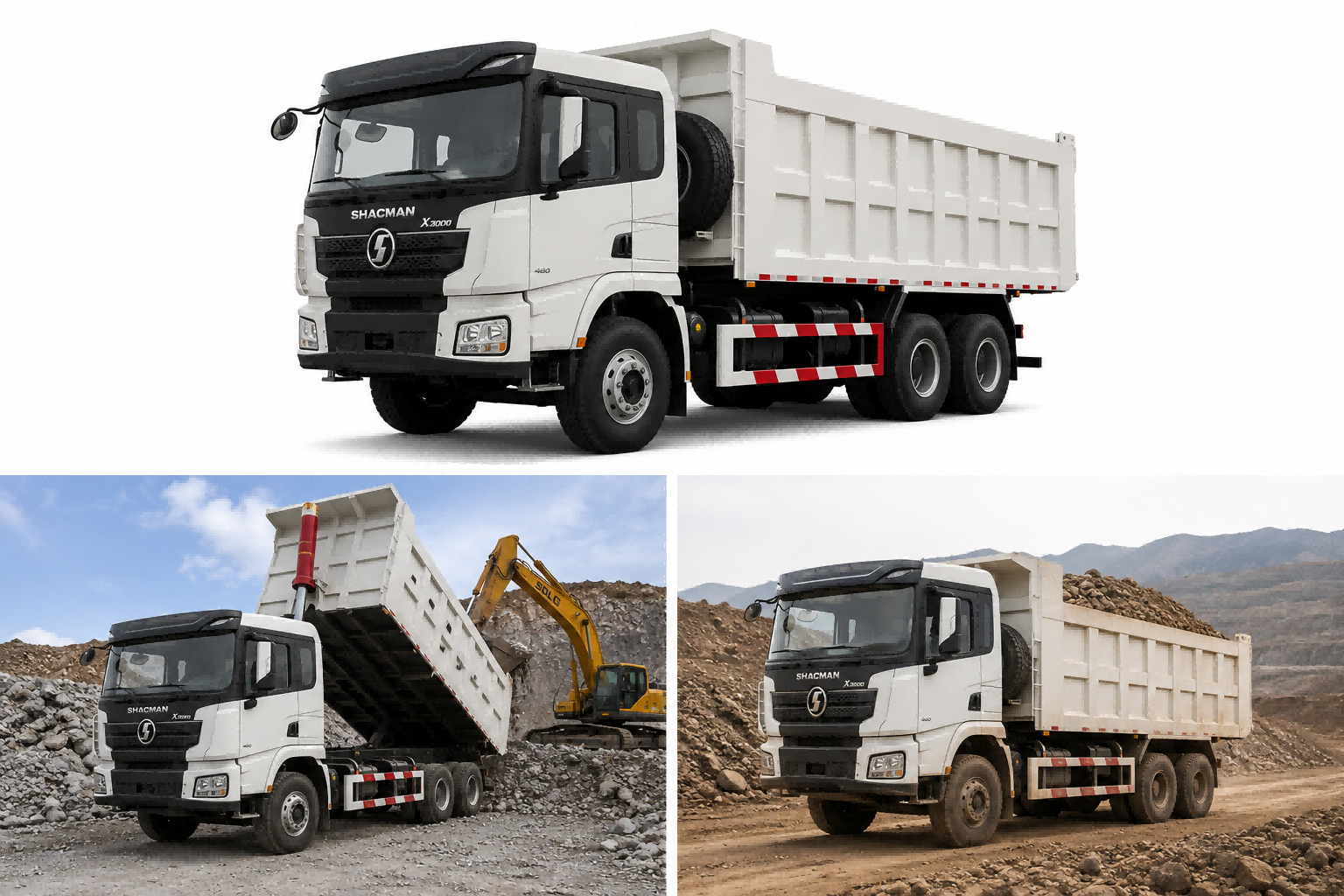

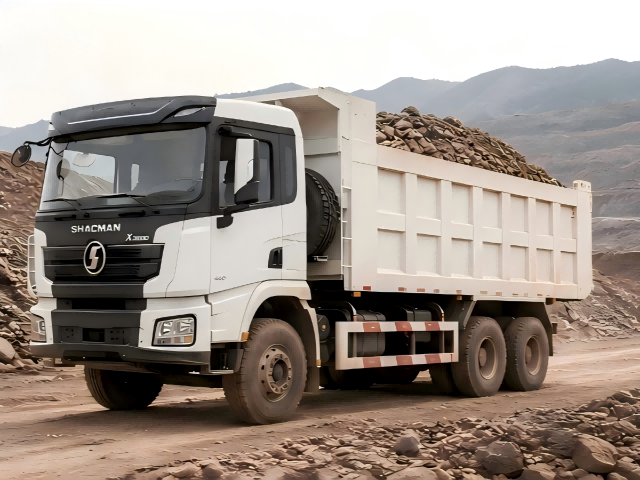

SHACMAN X3000 6X4 Dump Truck-Products Center-HOWO SINOTRUCK

Parameter

Specification

Vehicle Model

SHACMAN X3000 6×4 Dump Truck

Drive Type

6×4

Cabin

X3000 High Roof Cabin With Sleeper

Cabin Equipment

A/C, Air Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP12.430E201

Horsepower

430 HP

Emission Standard

Euro II / Euro III / Euro V

Displacement

11.596 L

Max Torque

2060 N·m

Transmission Brand

FAST

Transmission Model

12JSD200T

Gearbox

12 Forward & 2 Reverse

Front Axle

9.5T MAN Axle

Rear Axle

16T MAN Double Reduction Axle

Axle Ratio

5.92

Steering System

ZF Hydraulic Steering

Brake System

Air Brake + Exhaust Brake

ABS

Optional

Suspension

Heavy-duty Leaf Spring

Fuel Tank Capacity

400 L

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

10 + 1 Spare Tire

Wheelbase

3775 + 1400 mm

Overall Dimension

8500 × 2550 × 3450 mm

Cargo Box Size

5600 × 2300 × 1500 mm

Cargo Box Thickness

Bottom 8 mm / Side 6 mm

Cargo Box Material

High-strength Steel

Hydraulic System

HYVA Front Lift

GVW

25000 kg

Curb Weight

12500 kg

Loading Capacity

30–40 Tons

Maximum Speed

75 km/h

Approach Angle

28°

Departure Angle

30°

Application

Mining / Construction / Heavy Transport

Optional Configuration

Customized Configuration Supported

SHACMAN X3000 6X4 Dump Truck
