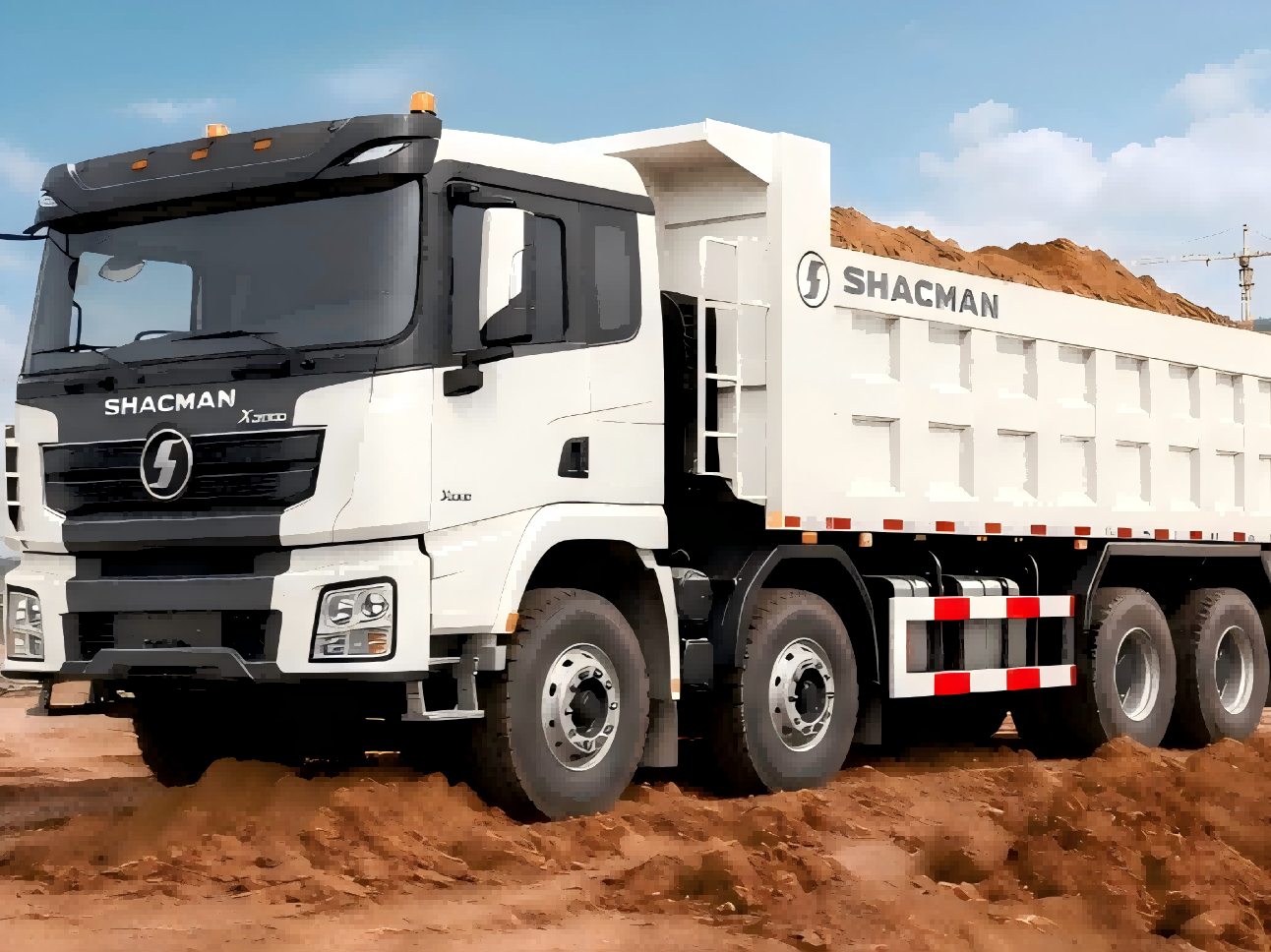

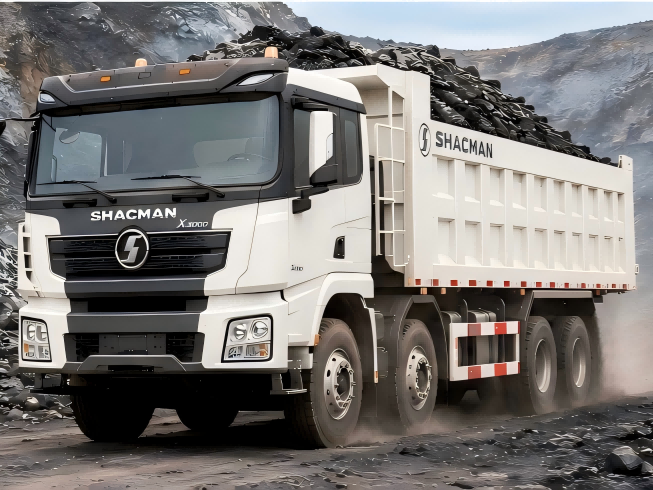

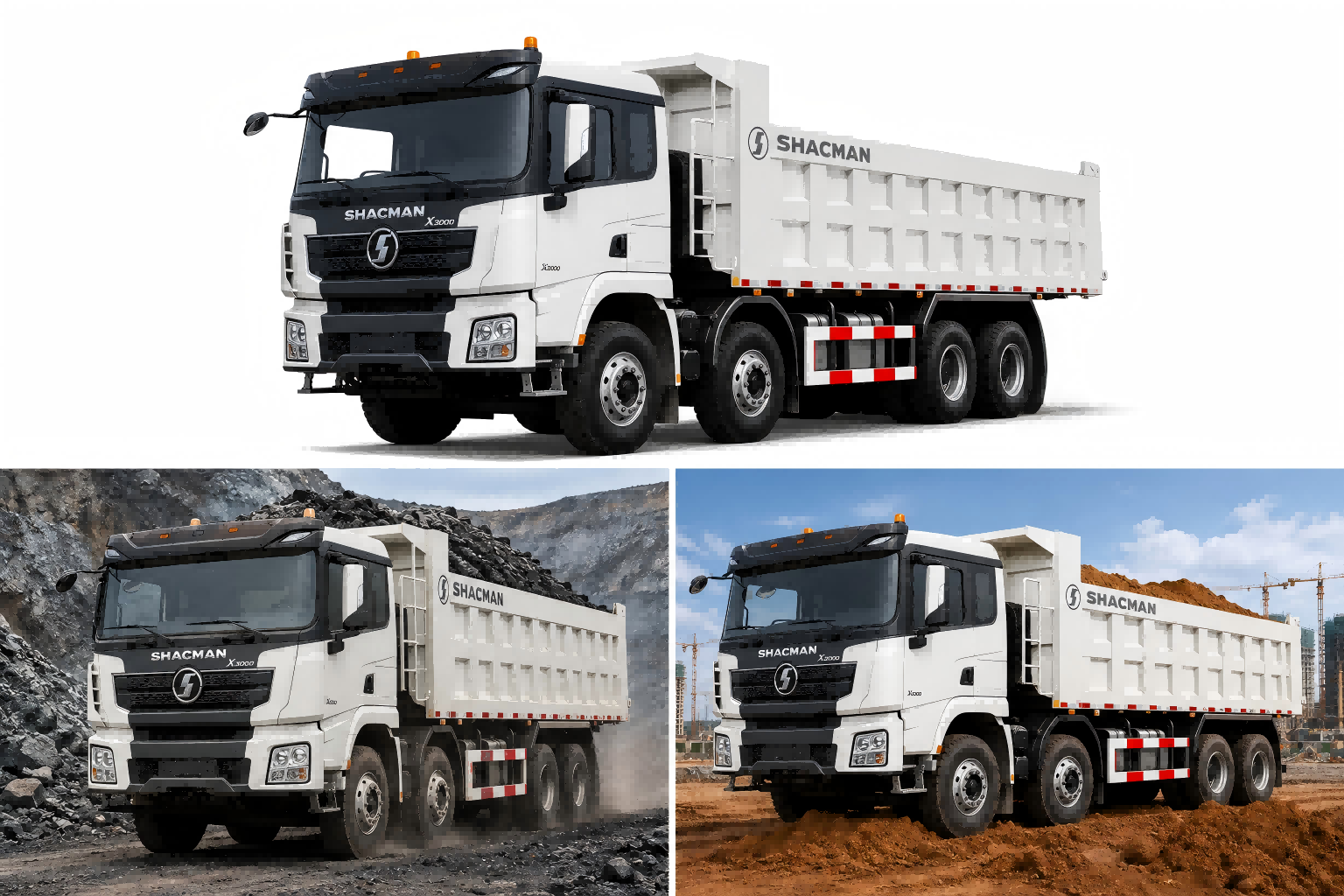

SHACMAN X3000 8X4 Dump Truck

Horsepower: 380/385/420/550 HP

Transmission: FAST

Fuel Tank: 380L/500L

Drive Type: 8×4

Color:Custom Configuration

Hotline:+8618660194444


Parameter
Specification
Vehicle Model
SHACMAN X3000 8×4 Dump Truck
Drive Type
8×4
Cabin
X3000 High Roof Cabin With Sleeper
Cabin Type
Left-hand Drive / Right-hand Drive
Seat Configuration
2 Seats + 1 Sleeper
Cabin Equipment
A/C, Air Suspension Seat, Electric Window, Central Lock
Engine Brand
WEICHAI / CUMMINS
Engine Model
WP13.550E501
Horsepower
550 HP
Emission Standard
Euro II / Euro III / Euro V
Displacement
12.54 L
Maximum Torque
2550 N·m
Transmission Brand
FAST
Transmission Model
12JSDX240TA
Gearbox
12 Forward & 2 Reverse
Clutch
430 mm Diaphragm Clutch
Front Axle
9.5T MAN Axle ×2
Rear Axle
16T MAN Double Reduction Axle ×2
Axle Ratio
5.262 / 5.92 Optional
Steering System
ZF Hydraulic Steering
Brake System
Dual Circuit Air Brake
Parking Brake
Spring Energy Brake
Auxiliary Brake
Engine Exhaust Brake
ABS
Optional
Suspension
Heavy-duty Multi-leaf Spring
Fuel Tank Capacity
500 L
Tire Specification
12.00R20 / 315/80R22.5
Number Of Tires
12 + 1 Spare Tire
Wheelbase
1800 + 3575 + 1400 mm
Overall Dimension
10500 × 2550 × 3450 mm
Cargo Box Length
7600 mm
Cargo Box Width
2300 mm
Cargo Box Height
1800 mm
Cargo Box Thickness
Bottom 10 mm / Side 8 mm
Cargo Box Material
High-strength Wear-resistant Steel
Hydraulic System
HYVA Front Hydraulic Lift
Dumping Direction
Rear Dump
GVW
41000 kg
Curb Weight
16500 kg
Payload Capacity
50–70 Tons
Maximum Speed
80 km/h
Minimum Turning Radius
12 m
Approach Angle
28°
Departure Angle
30°
Ground Clearance
314 mm
Application
Mining / Quarry / Construction / Heavy-duty Transport
Optional Configuration
Customized Configuration Supported
