Parameter

Specification

Vehicle Model

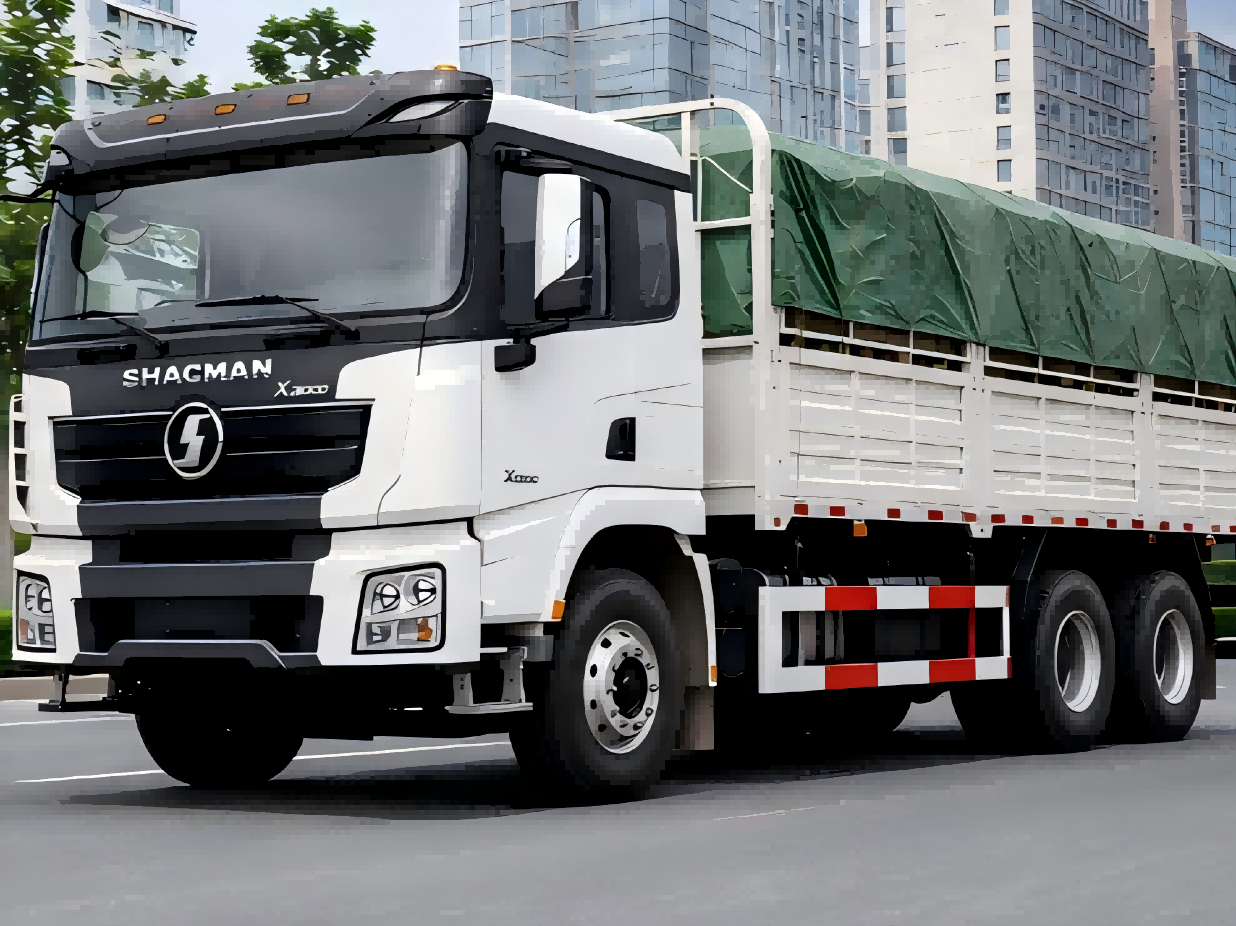

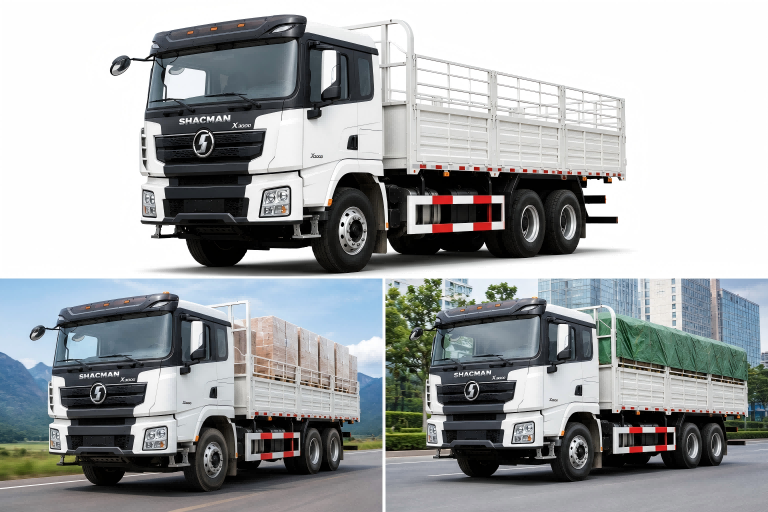

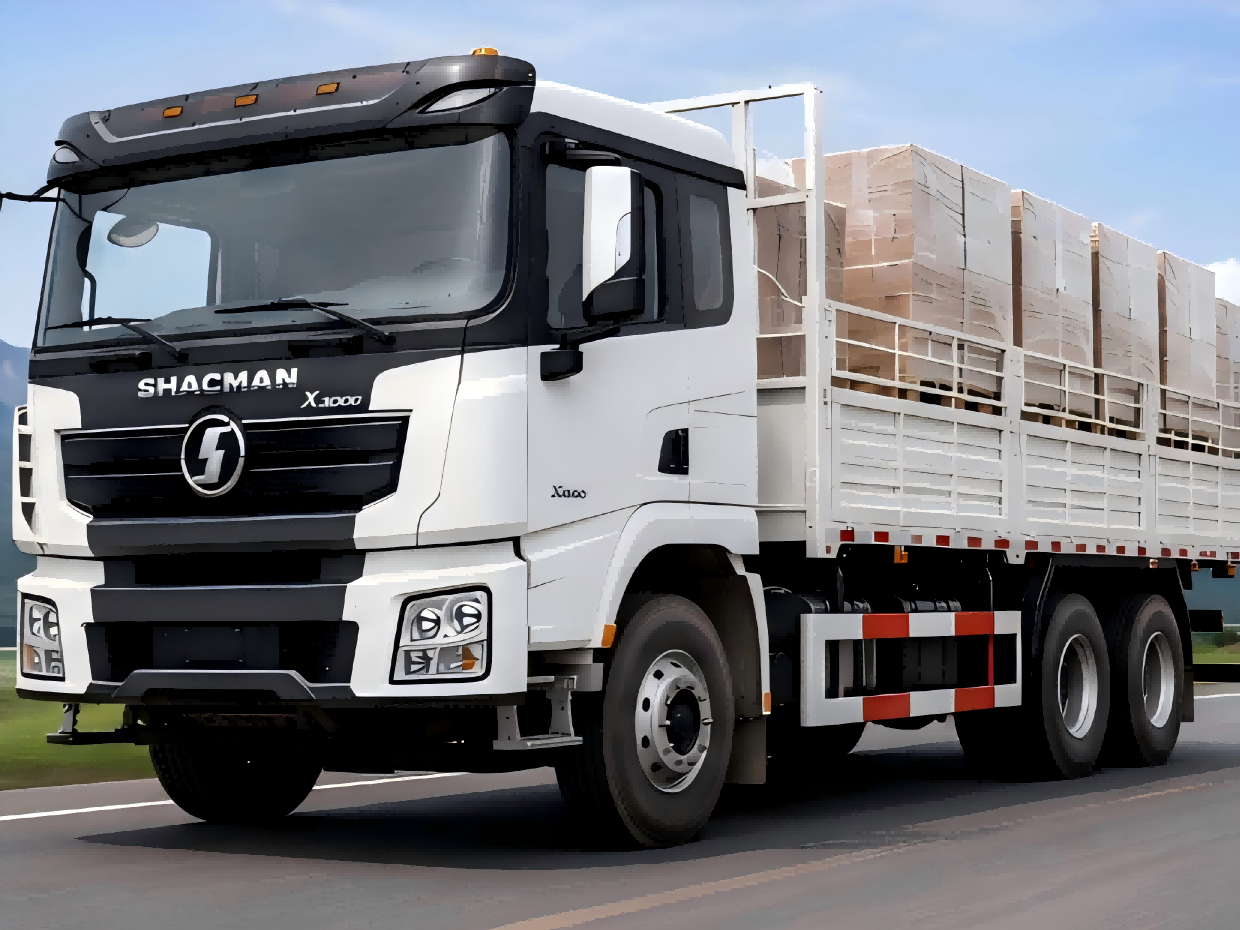

SHACMAN X3000 6×4 Lorry Truck

Vehicle Type

Cargo Truck / Lorry Truck

Drive Type

6×4

Cabin

X3000 High Roof Cabin With Sleeper

Driving Type

Left-hand Drive / Right-hand Drive

Seat Configuration

2 Seats + 1 Sleeper

Cabin Equipment

Air Conditioner, Air Suspension Seat, Electric Window, Central Lock

Engine Brand

WEICHAI / CUMMINS

Engine Model

WP12.430E201

Horsepower

430 HP

Emission Standard

Euro II / Euro III / Euro V

Displacement

11.596 L

Maximum Torque

2060 N·m

Transmission Brand

FAST

Transmission Model

12JSD200T

Gearbox

12 Forward & 2 Reverse

Clutch

430 mm Diaphragm Clutch

Front Axle

9.5T MAN Axle

Rear Axle

16T MAN Double Reduction Axle

Axle Ratio

4.769 / 5.262 Optional

Steering System

ZF Hydraulic Steering

Brake System

Dual Circuit Air Brake

Parking Brake

Spring Energy Brake

ABS

Optional

Suspension

Heavy-duty Multi-leaf Spring

Fuel Tank Capacity

400 L

Tire Specification

12.00R20 / 315/80R22.5

Number Of Tires

10 + 1 Spare Tire

Wheelbase

4375 + 1400 mm

Overall Dimension

9800 × 2550 × 3650 mm

Cargo Body Length

7200 mm

Cargo Body Width

2450 mm

Cargo Body Height

2200 mm

Cargo Body Material

High-strength Steel

Side Wall Type

Fence Type / Stake Type

Cargo Volume

38–45 m³

GVW

25000 kg

Curb Weight

11800 kg

Payload Capacity

30–40 Tons

Maximum Speed

95 km/h

Minimum Turning Radius

9.5 m

Ground Clearance

314 mm

Application

Logistics / Cargo Transport / Agricultural Transport / Industrial Delivery

Optional Configuration

Customized Configuration Supported
