Basic information

Function

Tractor - 400HP

Drive style

6×4

Steering wheel position

Left hand

Platform

GTL

Vehicle model

BJ4259SMFCB-4P

Complete vehicle dimension parameters

Wheelbase (mm)

3300＋1350

L*W*H (mm)

7000*2500*3150

Tread (front)/(rear)(mm)

2005/1800

Complete vehicle mass parameter

Chassis kerb weight（kg

10200

GVW（actual range）（t)

90

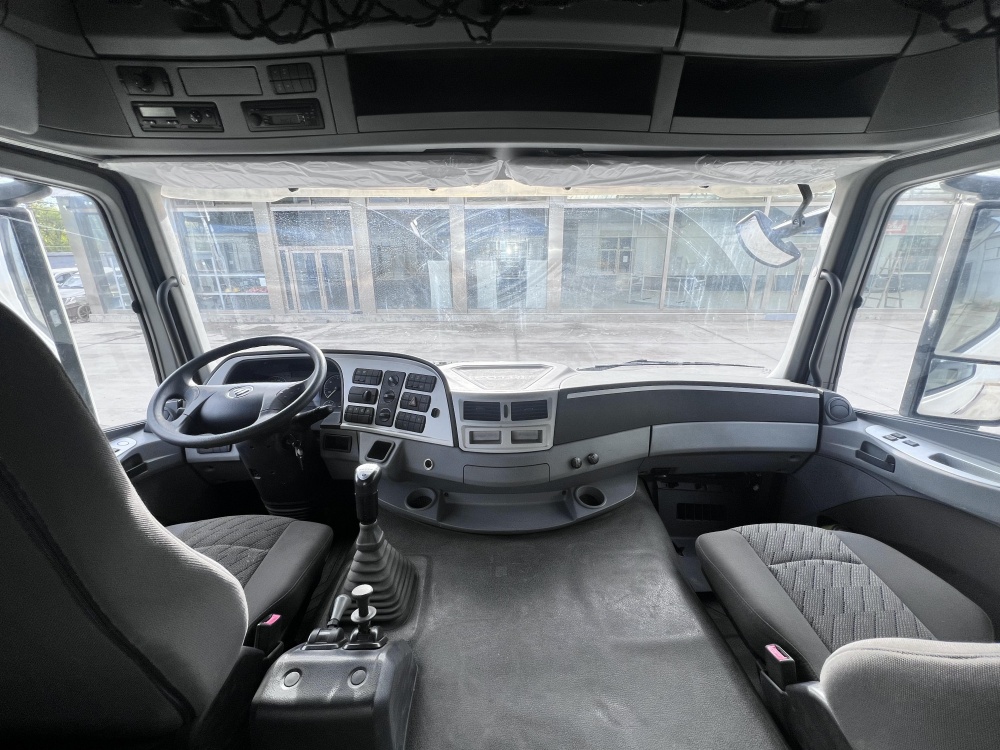

Cab

Body type

GTL  roof

Carrying number

3

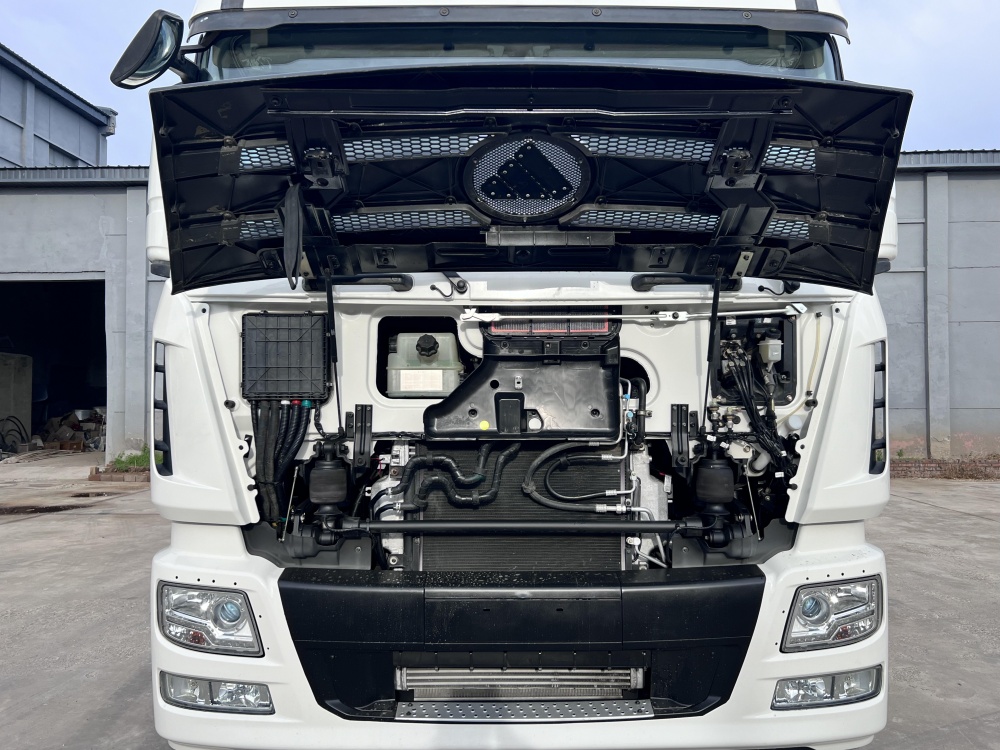

Engine

Engine Model

ISGe3-560

Engine Type

In-line,six-cylinder,High pressure common rail, diesel engin

Displacement (L)

12900

Max power (ps/rpm)

412/560/2600

Max torque (Nm/rpm)

2000/1000-2600

Engine Brand

Cummins

Emission

Euro III

Clutch

Clutch Type

Single, dry type diaphragm spring

Plate diameter

φ430

Gearbox

Gearbox Model

FAST 12 【12 Forward and 2 Reverse】

Gearbox Brand

FAST

Brake system

Service brake

Dual circuits pneumatic brake

Parking brake

Energy-accumulating spring air cut-off brake

Auxiliary brake

The engine exhaust brake

Suspension

Front suspension/leaf spring number

longitudinal leaf spring with dual acting telescopic shock absorbers and anti-roll bar,9

Rear suspension/leaf spring number

longitudinal leaf spring with balance Suspension and anti-roll bar/12

Front axle

Front axle Rated load/type

9T(Drum brakes)

Rear axle

Rear axle  Model

16T/double reduction

Axle housing type

Casting axle

Rated load/gear ratio

16T/4.03/4.2/4.76

Rear axle Brake type

Drum brakes

Tyre

Tyre Model / Quantity

13R22.5/10+1

Frame

External width (mm)

900/780

Stringer cross section (mm)

225/286×80×(8+5)

Steering Gear

Steering Gear Model

AM105L-SR

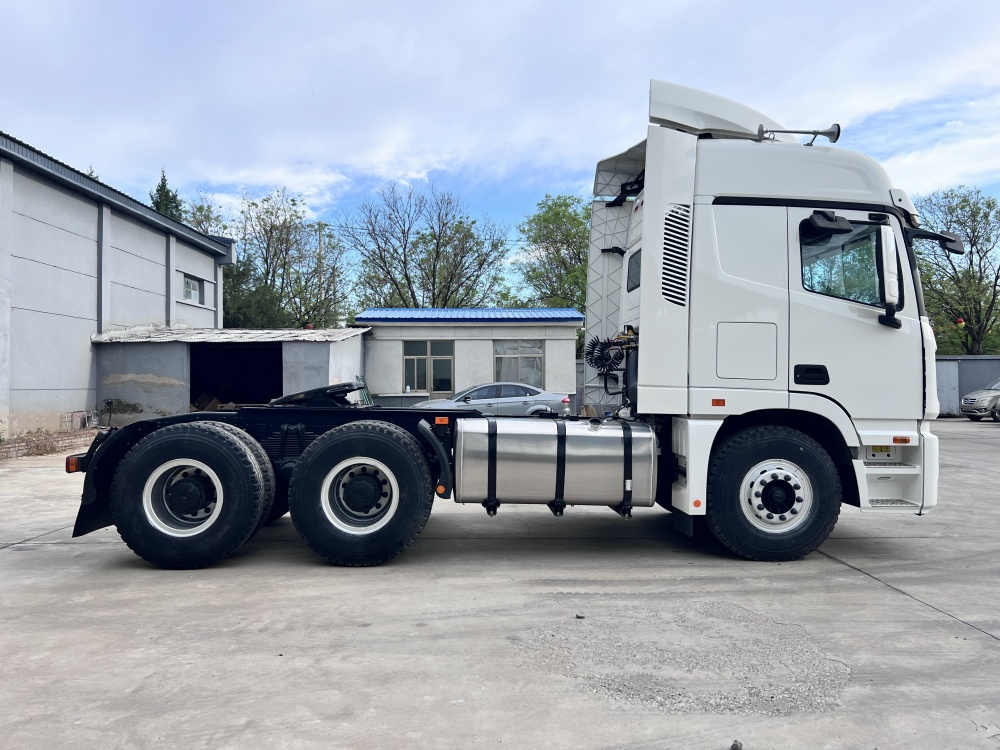

Fuel tank

Fuel tank Cubage and material

700L／aluminium alloy

Electrical system

Rated voltage

24V

Battery

2x12V-165Ah

Fifth Wheel

90#(3.5’’)

A/C

YES
