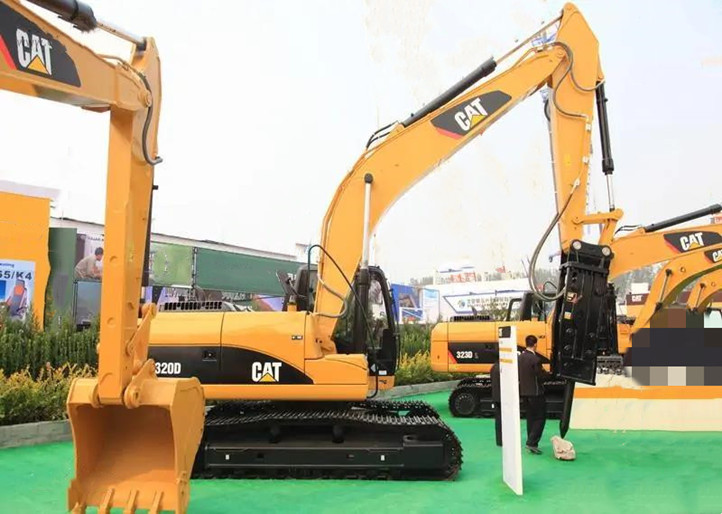

CAT 320D EXCAVATOR

Engine

CATC6.4ACERT

Rated power(kw/rpm)

103/2000

Displacement(L)

6.37

Machine working weight(kg)

20930

Tonnage(ton)

20

Boom length(mm)

5700

Stick length(mm)

2900

Bucket capacity(m³)

1

Swing speed（rpm）

11.5

Walking speed(km/h)

3.5/5.7

Bucket Digging Force (kN)

140.1

Stick digging force(kN)

106.4

Shipping size(mm)

9460*2800*3050

Maximum digging radius of parking face(mm)

9850

Boom cylinder bore/stroke(mm)

120/1260

Stick cylinder bore/stroke(mm)

140/1504

Bucket bore/stroke(mm)

120/1104
