Brand

SINOMOVER

Model

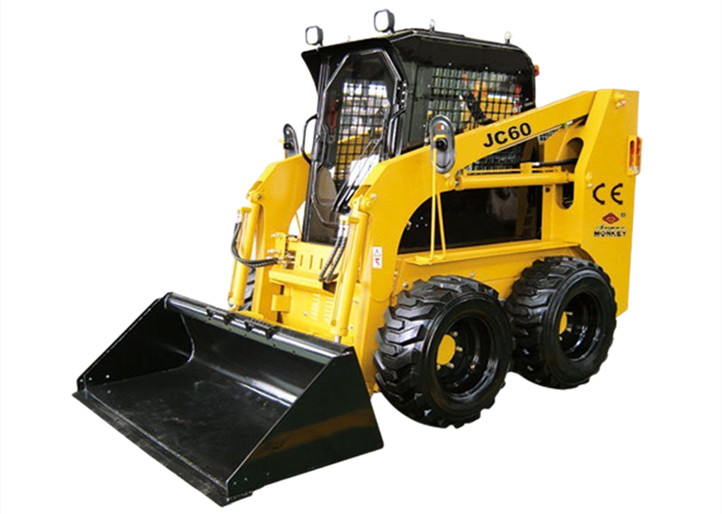

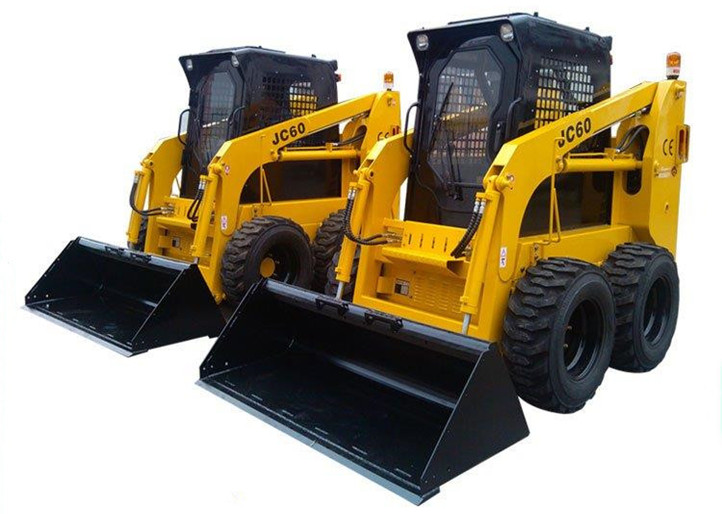

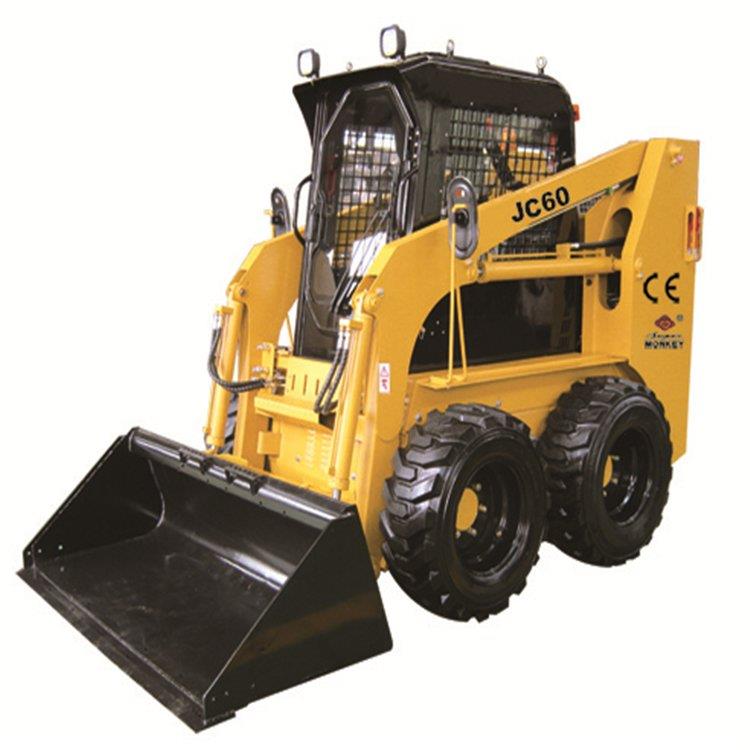

JC60

Dumping reach(mm)

750

Operating load(kg)

850

Wheelbase(mm)

991

Max speed(km/h)

12

Ground clearance(mm)

205

Rated flux(L/min)

75

Front turning radius(mm)

1958

Rated power(Kw/rpm)

45

Rear turning radius(mm)

1728

Machine overall size(mm)

4492*3185*2950

Tread width(mm)

1500

Self weight bucket(kg)

2800

Width(mm)

1880

Bucket capacity(m³)

0.4

With bucket width(mm)

1880

Overall operating height(mm)

4000

Height to bucket hinge pin (mm)

3100

With bucket length(mm)

3490

Cabin height(mm)

2160

Without bucket length(mm)

2750

Fuel tank(L)

80

Dumping Height(mm)

2400
