Brand

SHANTUI

Model

L26-C3 SG

(Sand version)

L26-C3 CH

(Coal version)

L26-C3 MW

(Mine version)

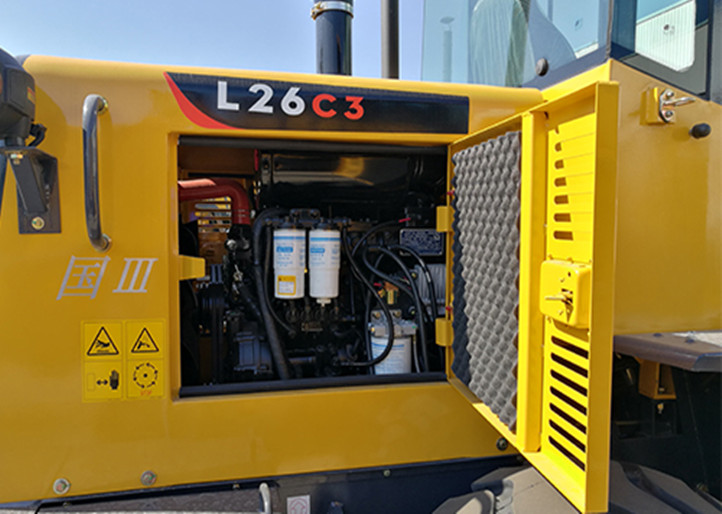

Engine model

LR4B3

LR4B3

LR4B3

Rated power(kW/rpm)

62.5/2200

62.5/2200

62.5/2200

Machine working weight(kg)

6200

6200

6200

Maximum dump clearance(mm)

2460/2850

2700

2460

Dumping reach(mm)

850/865

1000

850

Machine overall size(mm)

6120*2078*2850

6210*2078*2850

5590*2078*2450

Maximum lifting force(kN)

55

50

55

Three items(s)

8

8

8

Speed of advance(km/h)

F1:0-8，F2:0-11.5,F3:0-20, F4:0-28

F1:0-8，F2:0-11.5,F3:0-20, F4:0-28

F1:0-10，F2:0-24

Reverse speed (km/h)

R1:0-10, R2:0-24

R1:0-10, R2:0-24

R1:0-10, R2:0-24

Wheelbase(mm)

2270

2270

2270

Fuel tank(L)

105

105

105

Rated bucket capacity (m³)

1

1.5

1

Rated loading capacity(t)

2

2

2
