Brand : Shantui
Condition: Brand New and Used
Tyre Quantity: Wheel
Color ：Customized definition
Use : Mining, road construction, agriculture, forestry and water conservancy, Bridges, ports and wharves, quarrying and concrete, airportsProduct Parameters
Brand
SHANTUI
Model
L58K-C3 Pro
(Coal
bucket)
L58K-C3
(Standard
bucke)
L58K-C3
（ Standard rock bucket）
L58K-C3
· (Standard arm side hopper)
Engine model
WP10H
WP10H
WP10H
WP10H
Rated power(kW/rpm)
162/2000
162/2000
162/2000
162/2000
Machine working weight(kg)
18180/18200/18340±300
18220±300
18350/18080±300
19540±300
Maximum dump clearance(mm)
3470/3420/3420
3620/1440
3215
2710/4180
Dumping reach(mm)
1450/1510/1510
1350/1440
1220
------
Machine overall size(mm)
8770/8800/8800*3050/3050/3290*3410
8800/8960*3020*3410
8910*3075/3080*3410
8590*2970*3410
Maximum lifting force(kN)
≥185
≥185
≥185
≥185
Three items(s)
10
10
10
10
Speed of advance(km/h)
0-40
0-40
0-40
0-40
Reverse speed (km/h)
0-15
0-15
0-15
0-15
Wheelbase(mm)
3300
3300
3300
3300
Fuel tank(L)
300
300
300
300
Rated bucket capacity (m³)
3.6/4/4.5
3/3.5
2.5/2.7
2.7
Rated loading capacity(t)
5
5
5
5

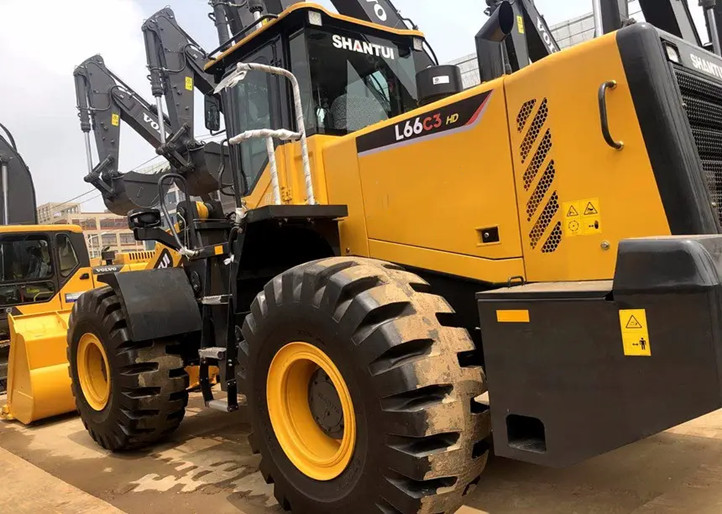

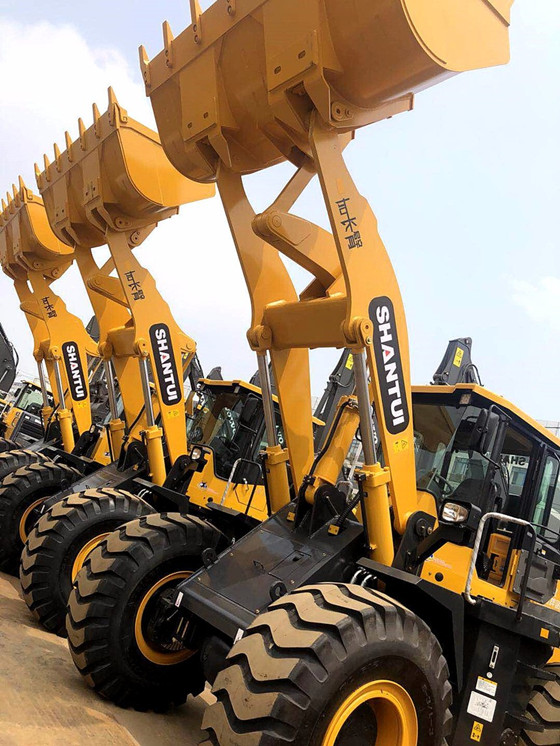

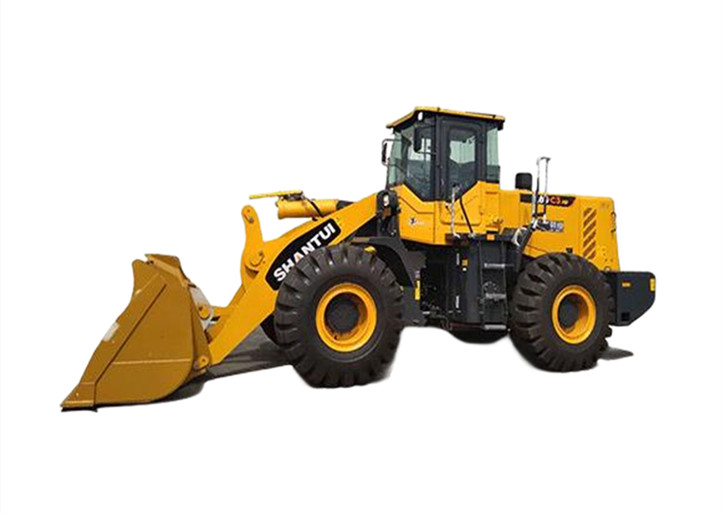

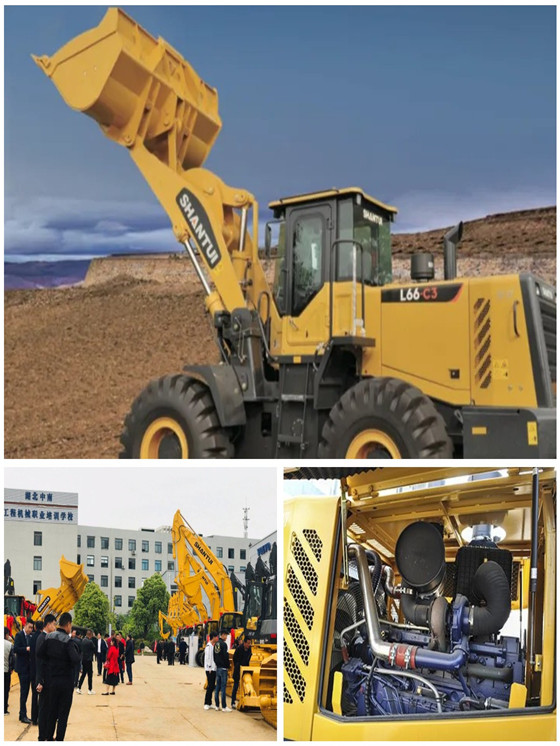

Product Images
