Brand : Shantui
Condition: Brand New and Used
Tyre Quantity: Wheel/Crawler
Color ：Customized definition
Use : Mining, road construction, agriculture, forestry and water conservancy, Bridges, ports and wharves, quarrying and concrete, airports
Product Parameters
Brand
SHANTUI
Model
L36-C3 SG
(Sand version)
L36-C3 CH
(Coal version)
Engine model
WP6
WP6
Rated power(kW/rpm)
92/2200
92/2200
Machine working weight(kg)
6200
6200
Maximum dump clearance(mm)
2875/3075/3200
2730/2912/3055
Dumping reach(mm)
955/906/886
1125/1076/1056
Machine overall size(mm)
6120*2078*2850
6210*2078*2850
Maximum lifting force(kN)
105±5
105±5
Three items(s)
≤10.6
≤10.6
Speed of advance(km/h)
F1:0-7.7，F2:0-13.8,F3:0-23, F4:0-38.3
F1:0-7.7，F2:0-13.8,F3:0-23, F4:0-38.3
Reverse speed (km/h)
R1:0-9.6, R2:0-29
R1:0-9.6, R2:0-29
Wheelbase(mm)
2700
2700
Fuel tank(L)
150
150
Rated bucket capacity (m³)
1.7
2.2
Rated loading capacity(t)
3
3

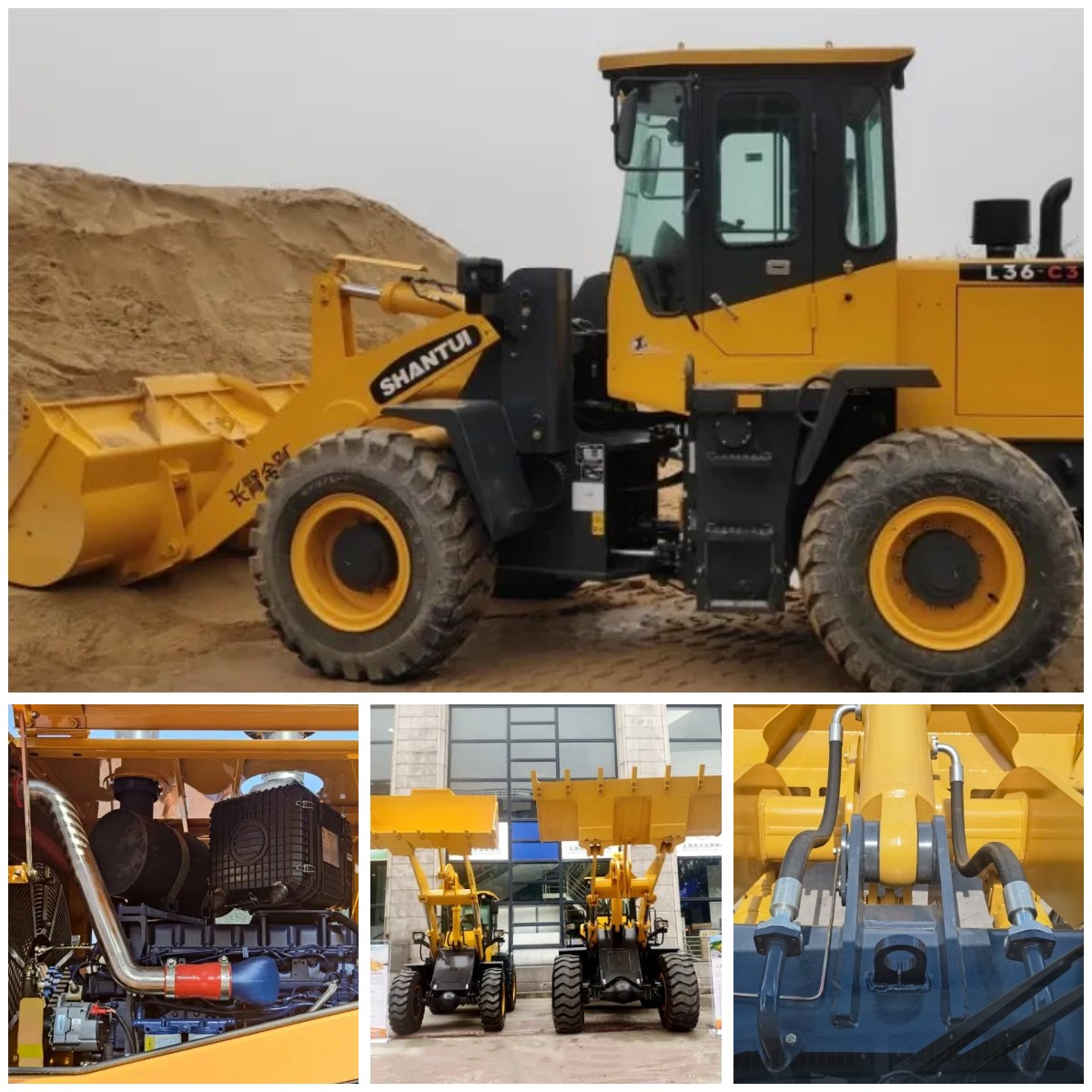

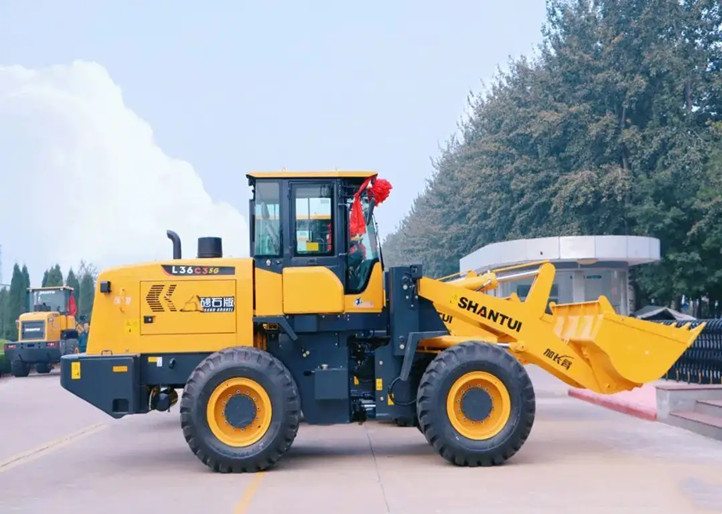

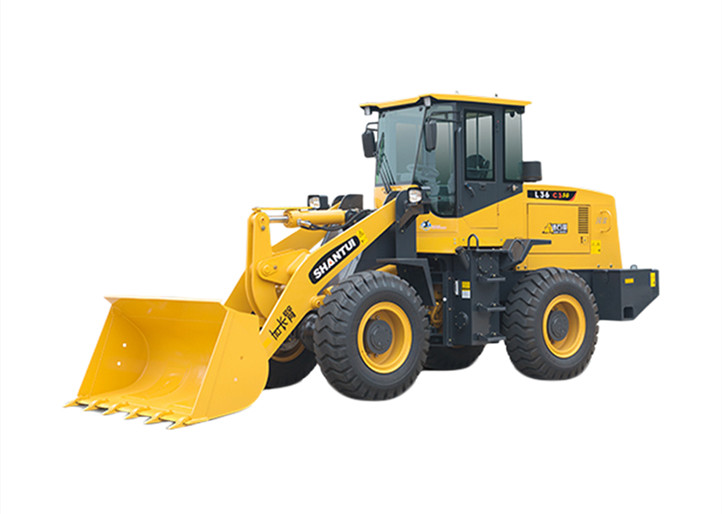

Product Images
