Brand : Shantui
Condition: Brand New and Used
Tyre Quantity: Wheel/Crawler
Color ：Customized definition
Use : Mining, road construction, agriculture, forestry and water conservancy, Bridges, ports and wharves, quarrying and concrete, airports
Product Parameters
Brand
SHANTUI
Model
L55-C3 SG
(Standard bucket)
L55-C3 CH
(Rock
bucket)
· L55-C3 Standard arm side hopper
Engine model
WP10H
WP10H
WP10H
Rated power(kW/rpm)
162/2000
162/2000
162/2000
Machine working weight(kg)
17100/17100/17150±300
17350±300
19100±300
Maximum dump clearance(mm)
3050/2990/2960
3060
2750
Dumping reach(mm)
1110/1170/1200
1085
1400
Machine overall size(mm)
8220/8300/8350*3066*3540
8120*3066*3450
8690*3066*3450
Maximum lifting force(kN)
≥170
≥170
≥170
Three items(s)
10.5
10.5
10.5
Speed of advance(km/h)
0-40
0-40
0-40
Reverse speed (km/h)
0-15
0-15
0-15
Wheelbase(mm)
3250
3250
3250
Fuel tank(L)
300
300
300
Rated bucket capacity (m³)
3.0/3.3/3.5
2.5
3.0
Rated loading capacity(t)
5
5
5

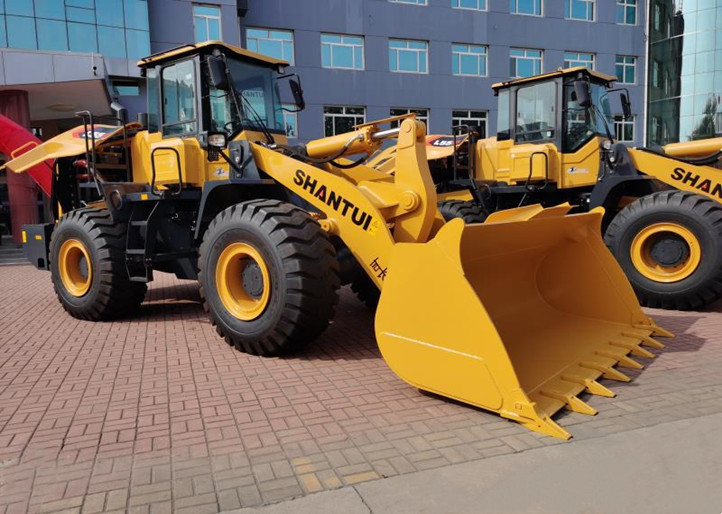

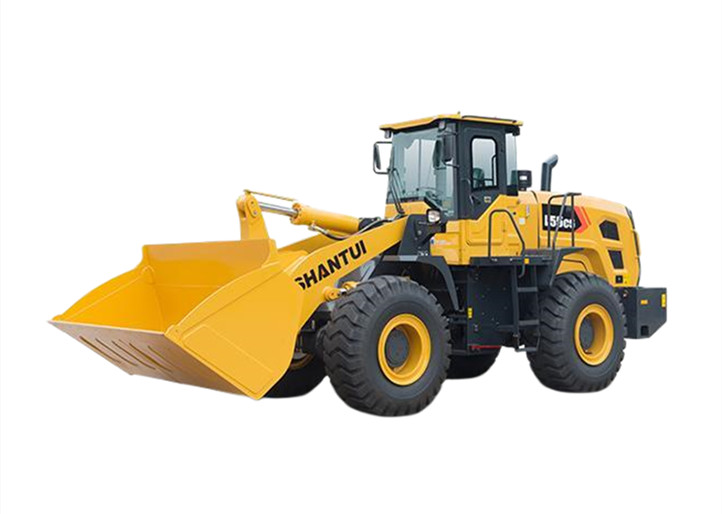

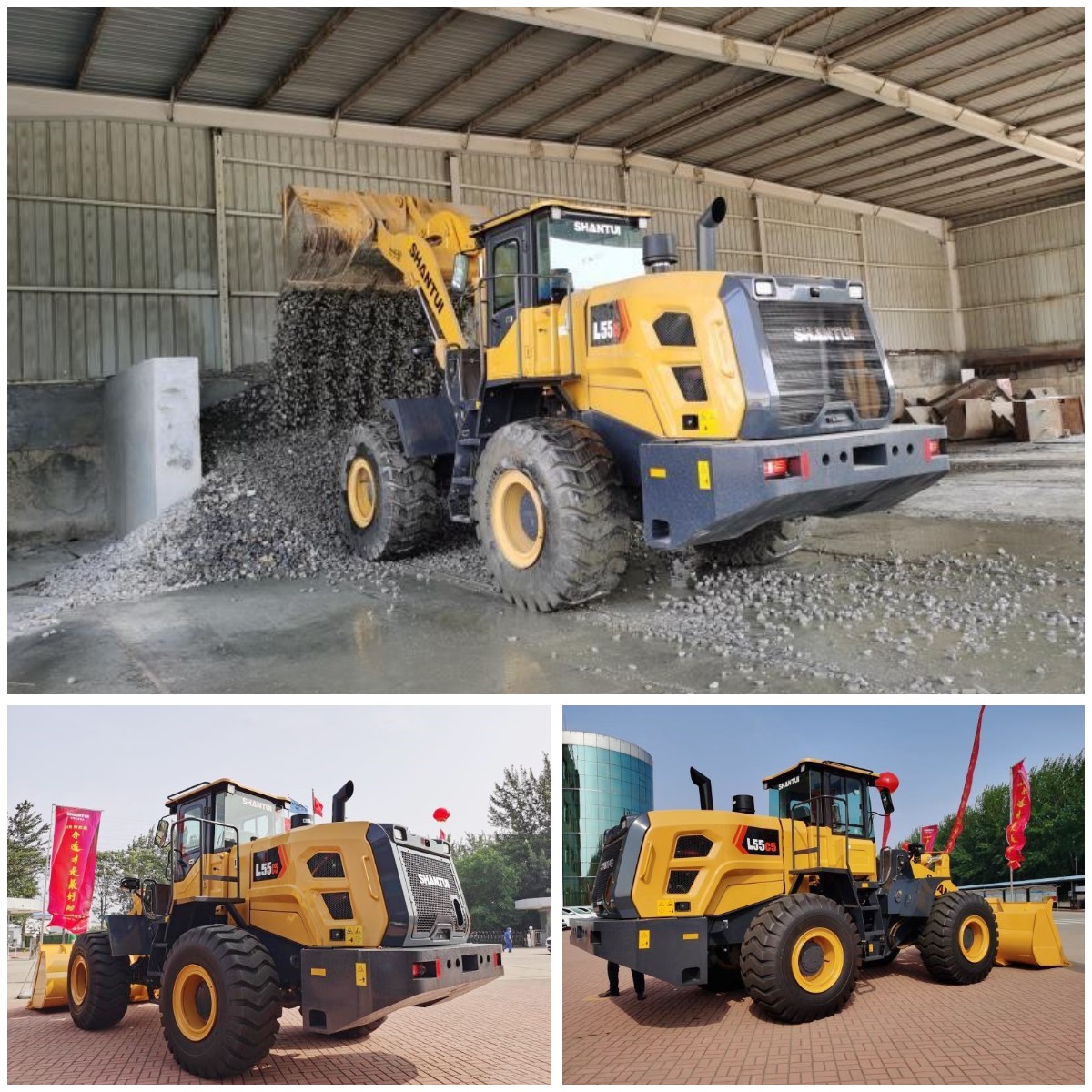

Product Images
