Brand : Shantui
Condition: Brand New
Tyre Quantity: Wheel
Color ：Customized definition
Description :Pure electric drive, zero emission, more environmentally friendly; Low energy consumption, less maintenance items, the use of the cost of about 50% of conventional diesel models greatly reduce the use of customers.
Product Parameters
LE56-X2 pure electric loader is independently developed by Shantui, with zero emission and low noise. It is mainly aimed at shovel loading of loose materials, and can be widely used in port, wharf, coal yard, grain depot and other working conditions. Can realize pure electric, zero emission of the whole process of energy saving and emission reduction, cost reduction and efficiency increase.
Brand
SHANTUI
Model
LE56-X2
(Coal bucket)
LE56-X2
· (Standard bucket)
Driving Motor Power (kW)
150
150
Machine working weight(kg)
18000
17860
Maximum dump clearance(mm)
3200
3450
Dumping reach(mm)
1390
1191
Machine overall size(mm)
8910*3050*3431
8555*3050*3431
Maximum lifting force(kN)
≥185
≥185
Three items(s)
10
10
Speed of advance(km/h)
F1:0-7.5/F2:0-15/F3:0-24/F4:0-42
F1:0-7.5/F2:0-15/F3:0-24/F4:0-42
Reverse speed (km/h)
R1:0-7.5/R2:0-15/R3:0-24/R4:0-42
R1:0-7.5/R2:0-15/R3:0-24/R4:0-42
Wheelbase(mm)
3300
3300
Battery capacity (L)
282
282
Rated bucket capacity (m³)
4
3
Rated loading capacity(t)
5
5

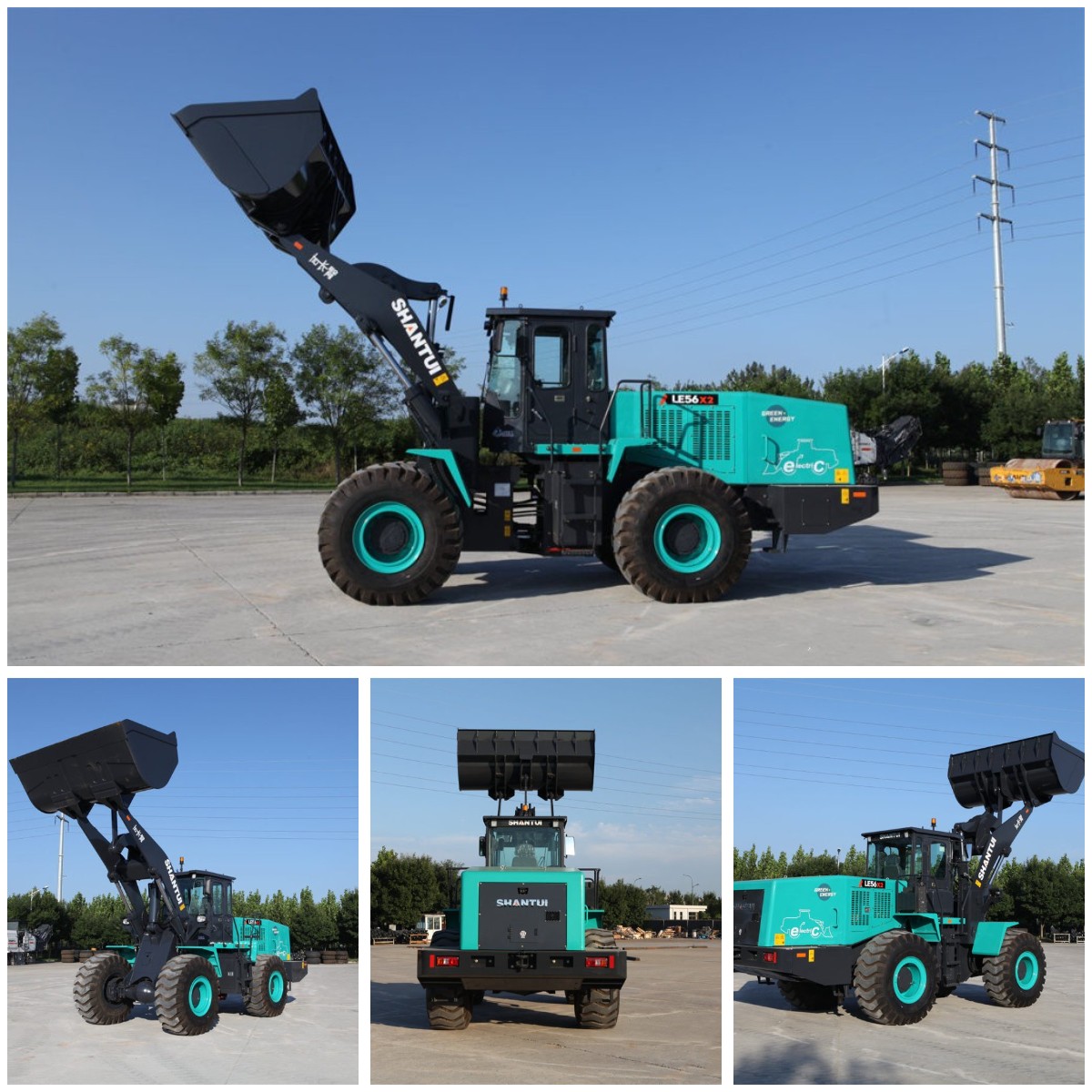

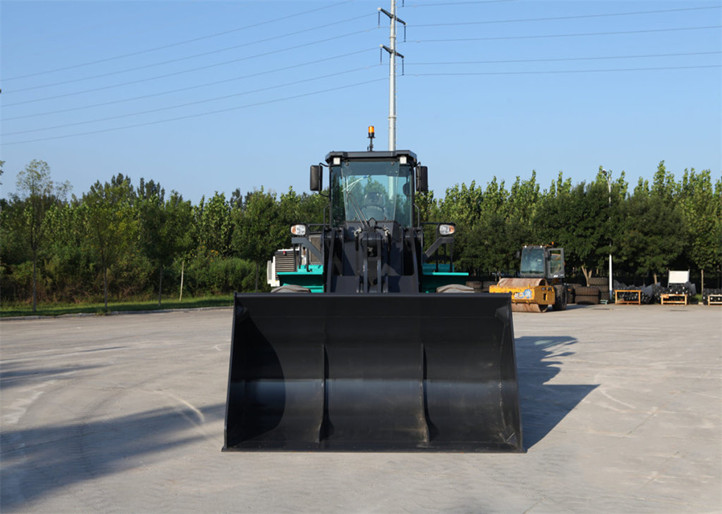

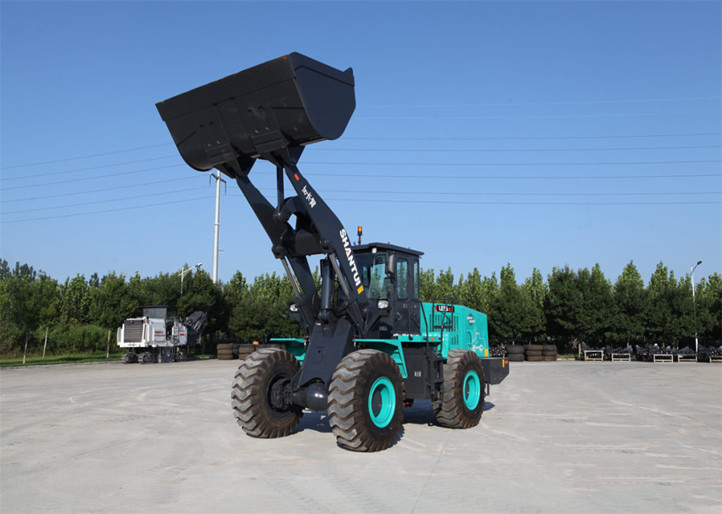

Product Images
