Sales model

Unit

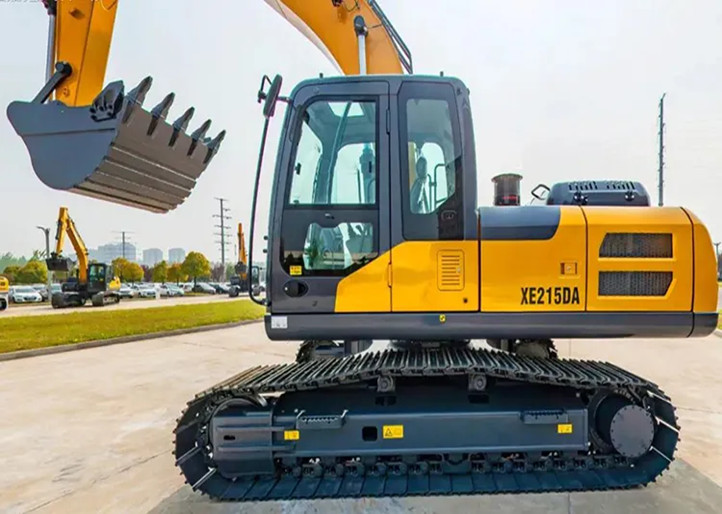

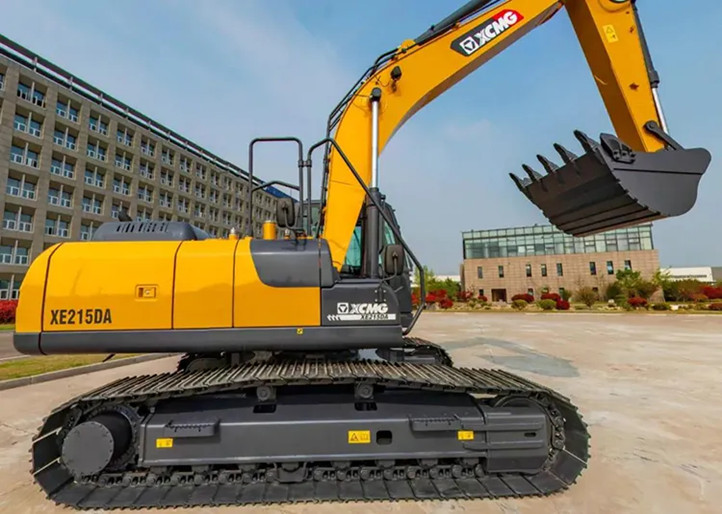

XE215DA

Operating weight

Kg

21500

Bucket capacity

m³

1.05

Engine

Model

/

QSB7

No. of cylinders

/

6

Output power

kw/rpm

135/2050

Maximum torque/speed

N.m/rpm

740/900-1600

Displacement

L

6.7

Main performance

Travel speed

km/h

5.4/3.1

Swing speed

r/min

11.8

Gradeability

°

≤35

Ground pressure

kPa

47.2

Bucket digging force

kN

149

Arm digging force

kN

111

Maximum traction

kN

184

Hydraulic system

Rated flow of main pump

L/min

2×216

Main safety valve pressure

MPa

34.3/37

Travel system pressure

MPa

34.3

Rotary system pressure

MPa

27.5

Pilot system pressure

MPa

3.9

Oil Capacity

Fuel tank capacity

L

400

Hydraulic tank capacity

L

220

Engine oil capacity

L

19.5

Appearance

size

A Overall length

mm

9625

B Overall width

mm

2990

C Overall height

mm

3100

D Width of platform

mm

2830

E Track length

mm

4255

F Overall width of chassis

mm

2990

G Track width

mm

600

H Length to center of rollers

mm

3462

I Track gauge

mm

2390

J Counterweight clearance

mm

1050

K Min. ground clearance

mm

486

L Min. tail swing radius

mm

2844

M Track height

mm

942

Working scope

A Max. digging height

mm

9620

B Max. dumping height

mm

6780

C Max. digging depth

mm

6680

D Maximum depth cut for 2240mm(8 ft) level bottom

mm

6500

E Max. vertical wall digging depth

mm

5715

F Max. digging radius

mm

9940

G Min. swing radius

mm

3530

Standard configuration

Length of boom

mm

5680

Length of arm

mm

2910

Bucket capacity

m³

1.05

Optional configuration

Length of boom

m³

/

Length of arm

m³
