Model

Metric unit

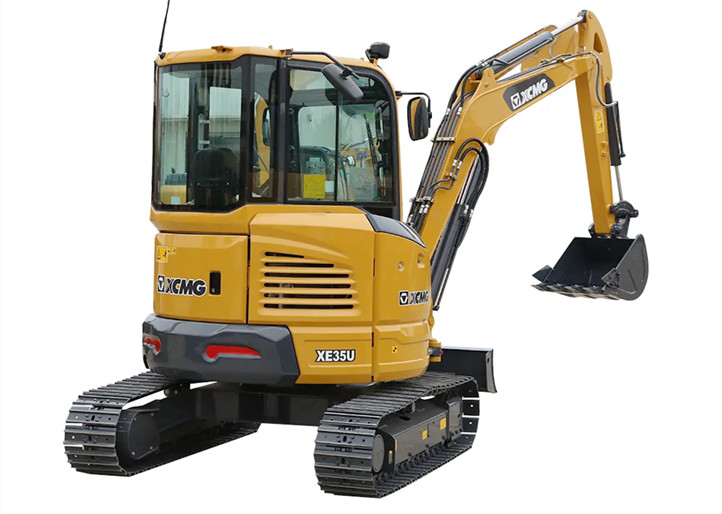

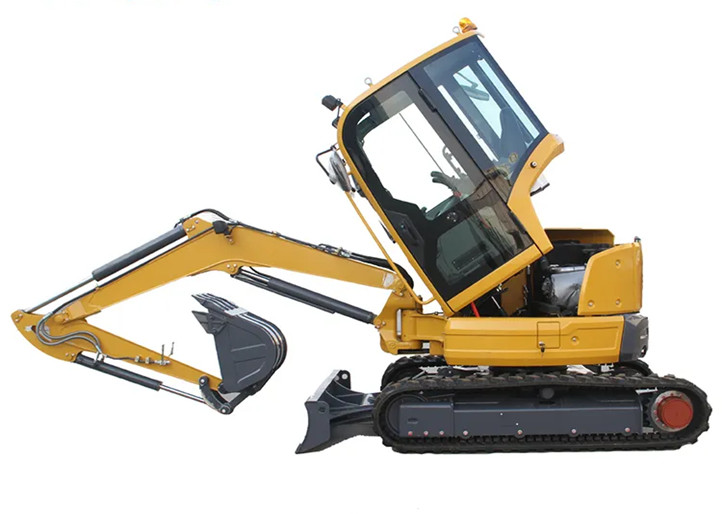

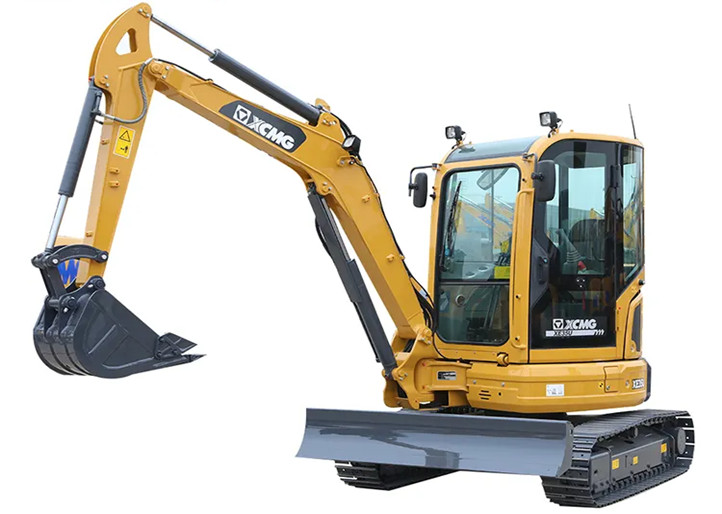

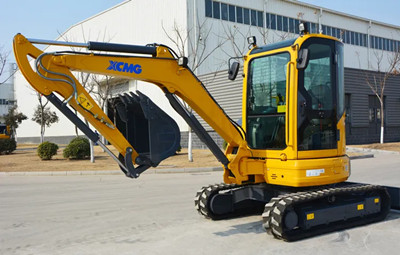

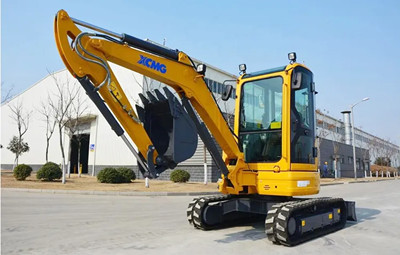

XE35U

Operating weight

kg

4200

Bucket capacity

m3

0.11

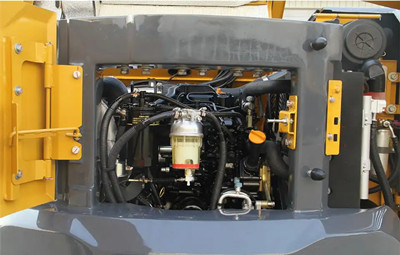

Engine

Model

3TNV88-BPXG

Displacement Standard

Tier IIIA

Style

Direct injection

---

√

Four strokes

---

√

Water cooling

---

√

No. of cylinders

---

3

Output power

kW/ r/min

21.6/2400

torque/speed

N.m

107.2/1444

Displacement

L

1.642

Main performance

Travel speed（H/L)

km/h

3.6/2.2

Gradeability

%

58

Rotating speed

r/min

8.5

Ground pressure

kPa

36.6

Bucket digging force

kN

24.6

Arm crowd force

kN

17.8

Appearance size

Overall length

mm

4960

Overall width

mm

1740

Overall height

mm

2535

Width of platform

mm

1585

Length of crawler

mm

2220

Overall width of chassis

mm

1740

Width of crawler

mm

300

Track length on ground

mm

1440

Crawler gauge

mm

1721

Clearance under counterweight

mm

587

Min. ground clearance

mm

297

Min. tail swing radius

mm

870

Working scope

Max. digging height

mm

5215

Max. dumping height

mm

3760

Max. digging depth

mm

3060

Max. vertical wall digging depth

mm

2260

Max. digging reach

mm

5415

Min. swing radius

mm

2170
