Product name

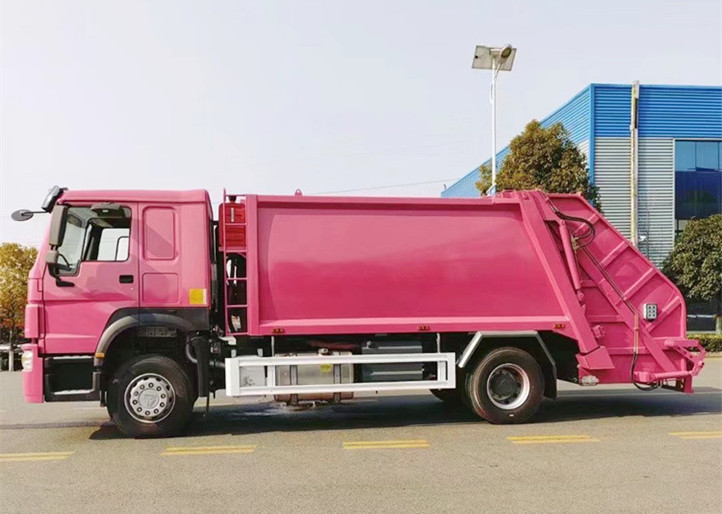

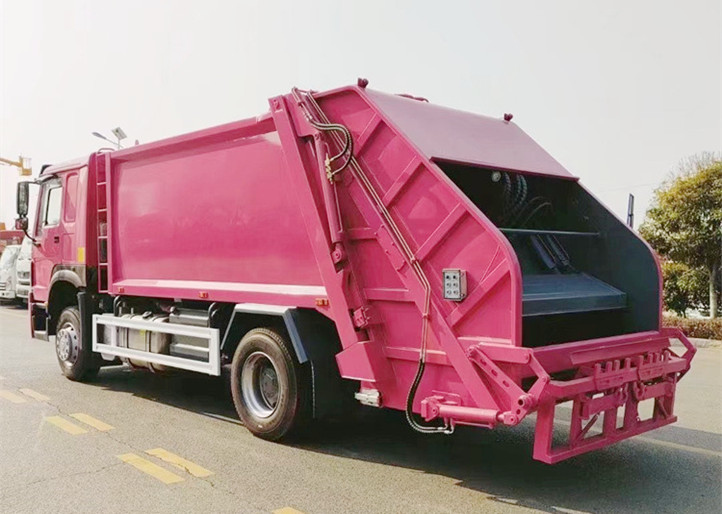

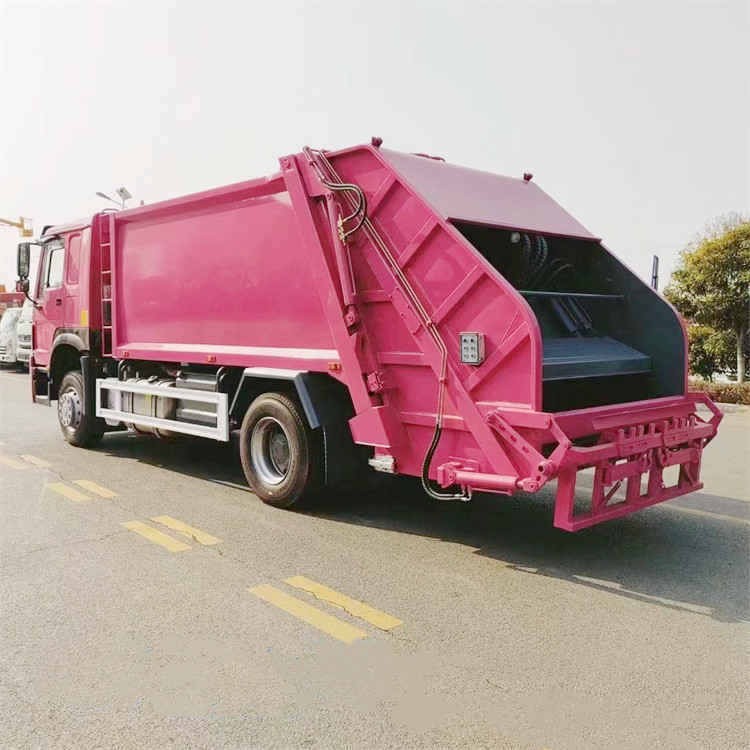

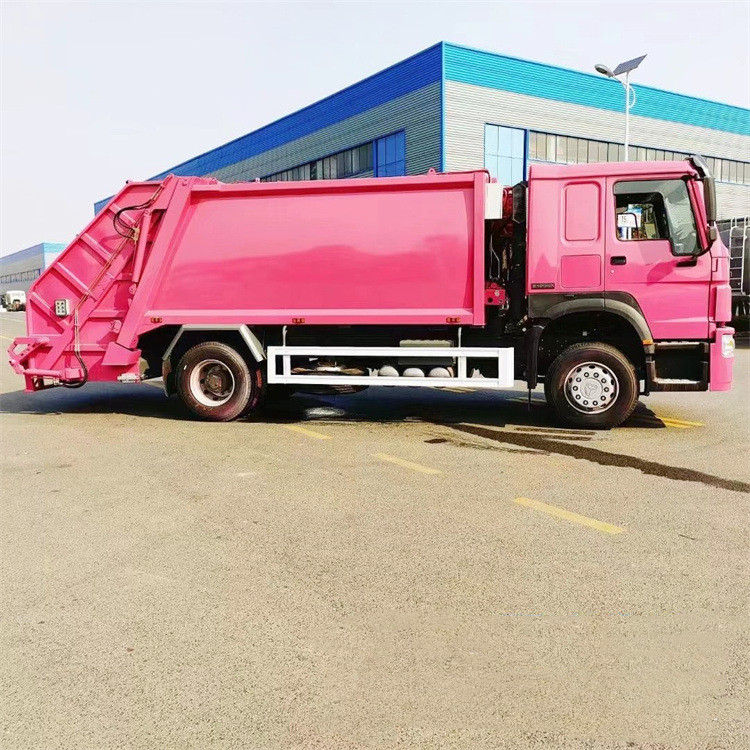

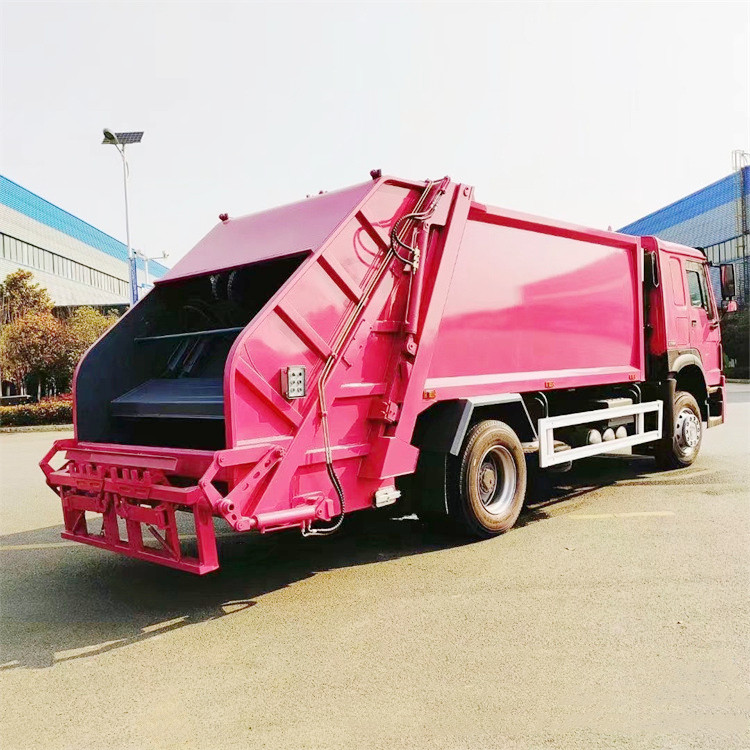

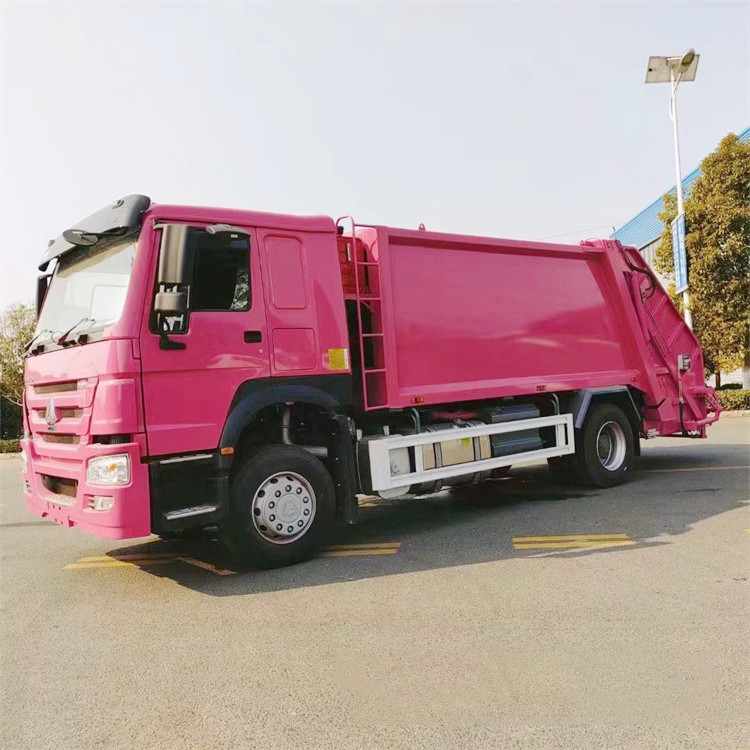

Howo diesel compression refuse collector

Total weight(Kg)

18000

Boundary dimension(mm)

9400,9200,9100,8950,8900,

8750×2550×3100,3300

Rated load(Kg)

7370,7305,7070,7005,6770,6705

Curb weight(Kg)

10500,10800,11100

passengers (persons)

2/3(person)

Approach Angle/departure Angle(°)

17/11

Front/rear suspension(mm)

1550/2700,1550/2750

Axle load(Kg)

6500/11500

Maximum speed(Km/h)

89,102

Other

1. The main special device of the car is composed of the box and the compression system, which is used for garbage collection and transportation; 2. The side protection material is Q235, which is connected with the bolt of the frame; The rear protection adopts the rear special device instead, and the lower edge is 480mm above the ground; 3.ABS Model number :446 004 6300; ABS manufacturer: Wibco Automotive Control System (China) Co., LTD. 5. Select the cab with the chassis, select the fully sealed bucket, semi-sealed bucket, no material device, tipping bucket device, tipping bucket device, swinging arm device, select the box type,

【Chassic parameters】

Chassic model

ZZ1187K511JF1

Chassic name

Howo Cargo chassic

Number of axle

2

Number of tires

6

Wheelbase(mm)

4500,4700,5100,5300

Tires specification

10.00R20 18PR,11R22.5 18PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5
