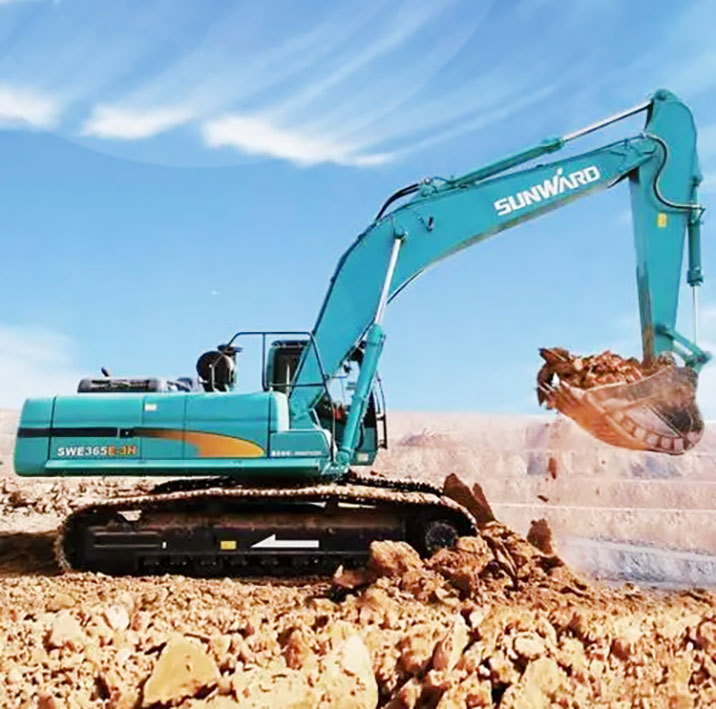

Product Parameters
| Power Unit |
|
|
|
| Model | Cummins QSL9 |
|
|
| Type | Four-stroke, supercharging, inter-cooling and direct injection |
|
|
| Air suction | Turbocharging and air cooling |
|
|
| Number of cylinders | 6 |
|
|
| Cylinder diameterxstroke | 114mmX145mm |
|
|
| Displacement | 8.9L |
|
|
| Rated power | 227kW/2000rpm |
|
|
| Maximum torque | 1505N-m/1400rpm |
|
|
| Traveling System |
|
|
|
| Driving mode | Hydraulic drive |
|
|
| Travel motor | 2x two-speed transmission axial piston motor |
|
|
| Parking brake | Hydraulic disc brake |
|
|
| Traveling speed | 3.6/5.8 km/h |
|
|
| Traveling traction | 307kN |
|
|
| Maximum gradeability 70% (35° ) |
|
|
|
| Hydraulic Unit |
|
|
|
| Hydraulic pump |
|
|
|
| Type | 2xvariable plunger pumps |
|
|
| Discharge of main pump | 2X324L/min |
|
|
| Discharge of pilot pump | 1 X30L/min |
|
|
| Maximum pressure |
|
|
|
| Oil circuit of working unit/supercharging | 32.4/34.3 MPa |
|
|
| Slewing oil circuit | 26.0MPa |
|
|
| Traveling oil circuit | 34.3MPa |
|
|
| Pilot oil circuit | 3.9MPa |
|
|
| Lower Traveling Frame |
|
|
|
| Intermediate frame | HD type and X-shaped frame |
|
|
| Crawler frame | HD type box beam structure |
|
|
| Number of crawler sections | 2X48 sections |
|
|
| Number of carrier rollers | 2X2 |
|
|
| Number of thrust rollers | 2X9 |
|
|
| Caterpillar track guide mechanism | 2X2 |
|
|
| Coolant and Lubricant |
|
|
|
| Fuel tank | 650L |
|
|
| Hydraulic oil tank | 320L |
|
|
| Radiator | 28L |
|
|
| Engine oil | 28L |
|
|
| Traveling reducer oil | 2X8L |
|
|
| Slewing reducer oil | 10.5L |
|
|
| Hydraulic Oil Cylinder |
|
|
|
|
|
Number of cylinders - cylinder diameter x arm diameter x stroke |
|
|
| Boom oil cylinder | 2-150mmX100mmX 1530mm |
|
|
| Arm oil cylinder | 1-170mmX120mmX 1785mm |
|
|
| Bucket oil cylinder | 1-150mmX100mmX1193mm |
|
|
| Rotary System |
|
|
|
| Driving mode | Hydraulic drive |
|
|
| Swing motor | Axial plunger motor |
|
|
| Parking brake | Hydraulic disc brake |
|
|
| Rotating speed | 9.1 rpm |
|
|
| Bucket | |||
| m3 Bucket capacity (ISO standard) | 1.6 | 1.8 | 2.0 |
| mm Bucket width (including side blade plate) | 1340 | 1480 | 1600 |
| Bucket weight kg | 1642 | 1820 | 1900 |
| Number of bucket teeth | 5 | 5 | 5 |
| Configurations | |||
| (2.9m) Standard arm | Standard Configurations | O | O |
| Arm（3.26m） | △ | O | —— |
| Arm（2.67m） |
|
△ | o |
|
Working Weight
and Specific Pressure
|
|
|
|
|
|
|
||
| The working weight includes a 6,500 mm HD type boom, a 2,900 |
|
|
|
| mm HD type arm, an operator, lubricant, coolant, fuel and other |
|
|
|
| standard equipment. |
|
|
|
| Working weight | 36200kg |
|
|
| Width of track link | 600mm |
|
|
| Ground specific pressure | 67.1 kPa |
|
|
