Product Parameters

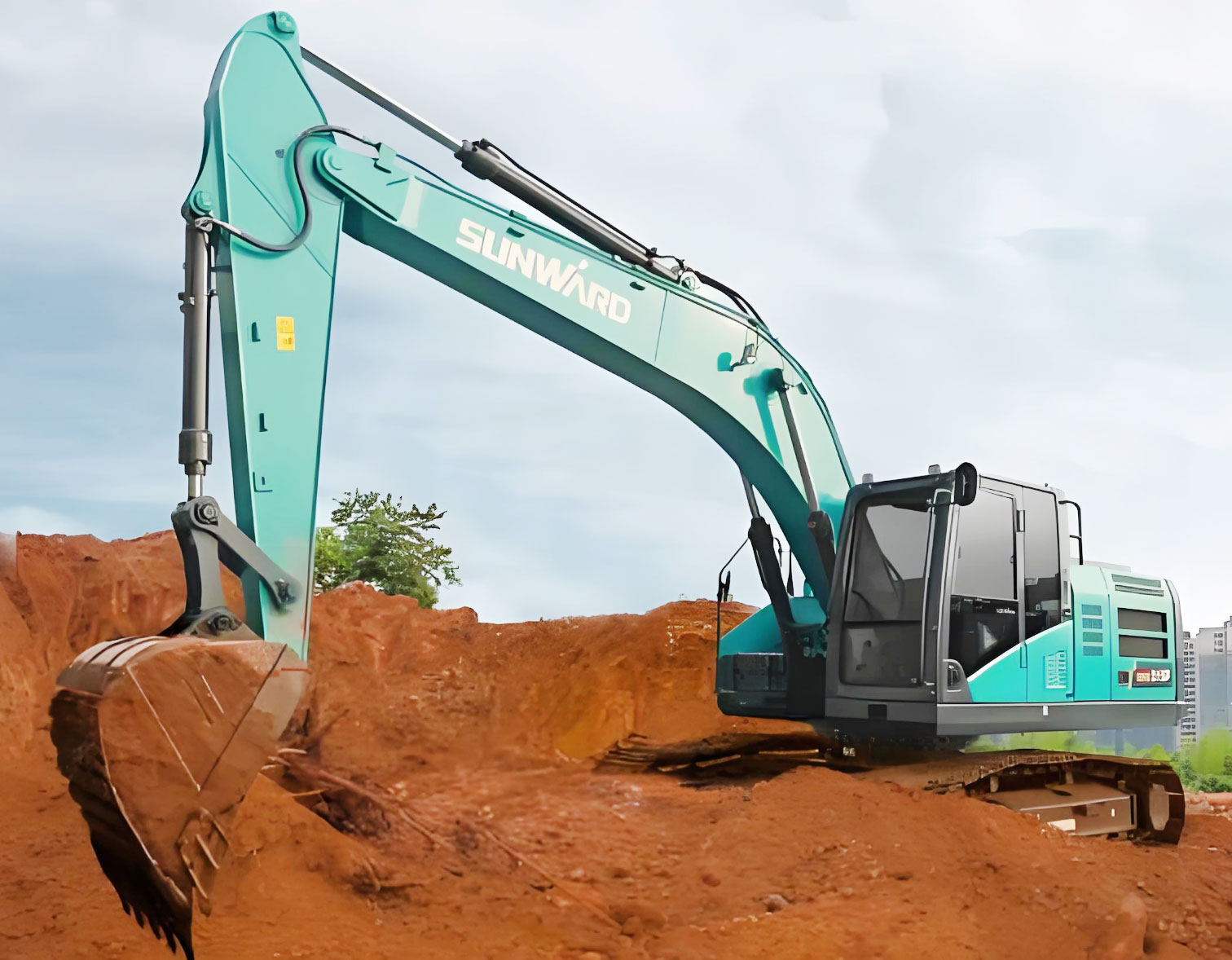

Product Images
Parameter
ENGINE
Brand
Cummins
Model
QSF3.8
Type
4-cylinder, 4-stroke,
water cooled, turbocharged
Displacement
3.8L
Power
93kW/2200rpm
DIMENSIONS
Counterweight Clearance
940mm
Tail Swing Radius
2355mm
Shipping Length
7825mm
Shipping Width
2600mm
Shipping Height
2825mm
WORKING RANGES
Max. Cutting Height
8700mm
Max. Loading Height
6200mm
Max. Digging Depth
5525mm
Max. Vertical Wall Digging Depth
5000mm
Max. Digging Reach
8370mm
Max. Digging Reach (Ground)
8225mm
Bucket Digging Force
100kN
Stick Digging Force
76kN
Ground Pressure
36.8kPa
Swing Speed
11rpm
ELECTRIC SYSTEM
Nominal Voltage
24V
Batteries
120Ah
Alternator
24V-70A
Starter
24V-4.8Kw
DRIVE
Max.Travel Speed (2nd/1st)
5.3/3.2km/h
Gradeability
35°
Max. Traction
115kN
CAPACITY
Fuel Tank 245L
Hydraulic Tank 150L
UNDERCARRIAGE
Length to center of rollers
3000mm
Track length
3765mm
Track gauge
2000mm
Undercarriage Width
2600mm
Track shoe width
600mm
HYDRAULIC SYSTEM
Main Pumps
Type
2 piston pumps
Displacement
2x126.4 L/min
Working Pressure
31.4/34.3 MPa
