Condition : Brand New and Used
Brand : SUNWARD
Tonnes :14 tons
Model :SWE150E
Backet Capacity : 0.56 m3
Product Parameters
| Parameter | |||||||
| ENGINE | |||||||
| Brand | ISUZU | ||||||
| Model | GI-4JJ1XKSC | ||||||
| Type |
4-cylinder, 4-stroke,
water cooled, turbocharged
|
||||||
| Displacement | 2.999L | ||||||
| Power | 84kW/2200rpm | ||||||
| DIMENSIONS |
|
||||||
| Counterweight Clearance | 915mm |
|
|||||
| Tail Swing Radius | 2350mm |
|
|||||
| Shipping Length | 7815mm |
|
|||||
| Shipping Width | 2600mm |
|
|||||
| Shipping Height | 2825mm |
|
|||||
| WORKING RANGES |
|
||||||
| Max. Cutting Height | 8630mm |
|
|||||
| Max. Loading Height | 6130mm |
|
|||||
| Max. Digging Depth | 5640mm |
|
|||||
| Max. Vertical Wall Digging Depth | 4540mm |
|
|||||
| Max. Digging Reach | 8355mm |
|
|||||
| Max. Digging Reach (Ground) | 8230mm |
|
|||||
| Bucket Digging Force | 100kN |
|
|||||
| Stick Digging Force | 72.5kN |
|
|||||
| Ground Pressure | 36kPa |
|
|||||
| Swing Speed | 11.1rpm |
|
|||||
| ELECTRIC SYSTEM | |||||||
| Nominal Voltage | 24V | ||||||
| Batteries | 120Ah | ||||||
| Alternator | 24V-50A | ||||||
| Starter | 24V-4kW | ||||||
| DRIVE | |||||||
| Max.Travel Speed (2nd/1st) | 5.4/3.3km/h | ||||||
| Gradeability | 35° | ||||||
| Max. Traction | 115kN | ||||||
| CAPACITY |
|
||||||
| Fuel Tank 245L |
|
||||||
| Hydraulic Tank 150L |
|
||||||
| UNDERCARRIAGE | |||||||
| Undercarriage Width | 2600mm | ||||||
| Track Height | 825mm | ||||||
| Tumbler Distance | 3000mm | ||||||
| Track Length | 3735mm | ||||||
| Shoe Width | 600mm | ||||||
| HYDRAULIC SYSTEM |
|
||||||
| Main Pumps |
|
||||||
| Type | 2 piston pumps |
|
|||||
| Displacement | 2x139 L/min |
|
|||||
| Working Pressure | 31.4/34.3 MPa | ||||||

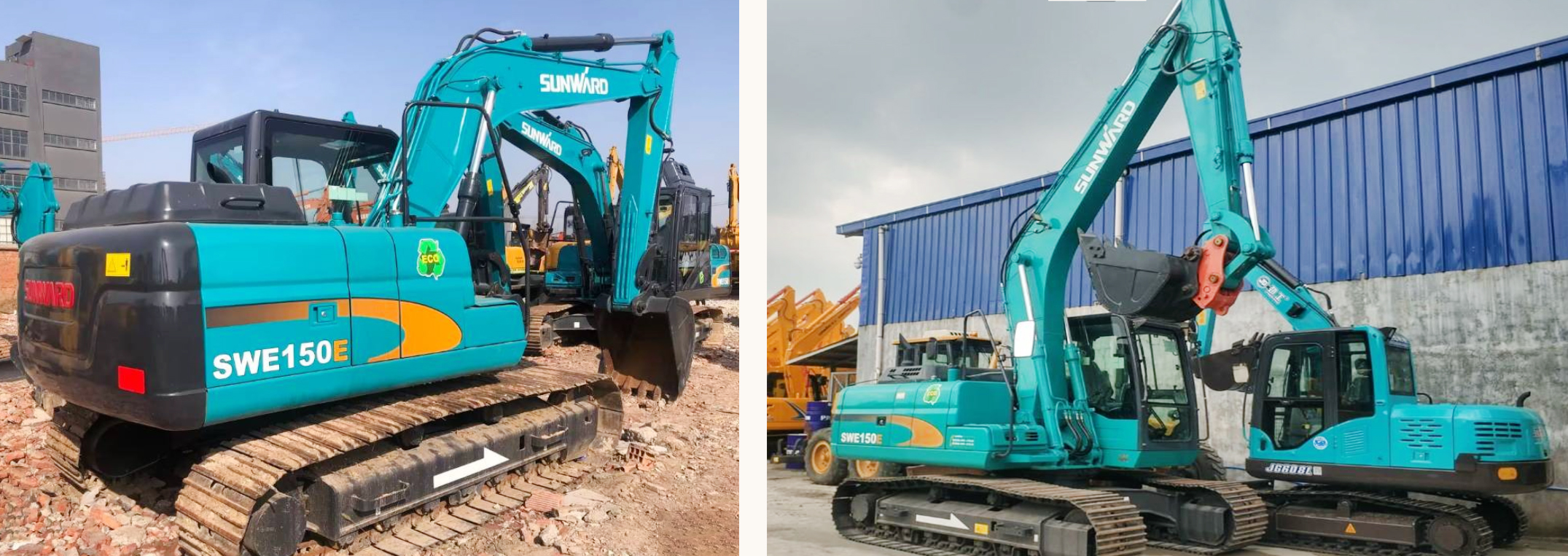

Product Images
