Cabin:New model
Hosre Power:371/400/430
Drive Type:8×4
Capcity:50cubic

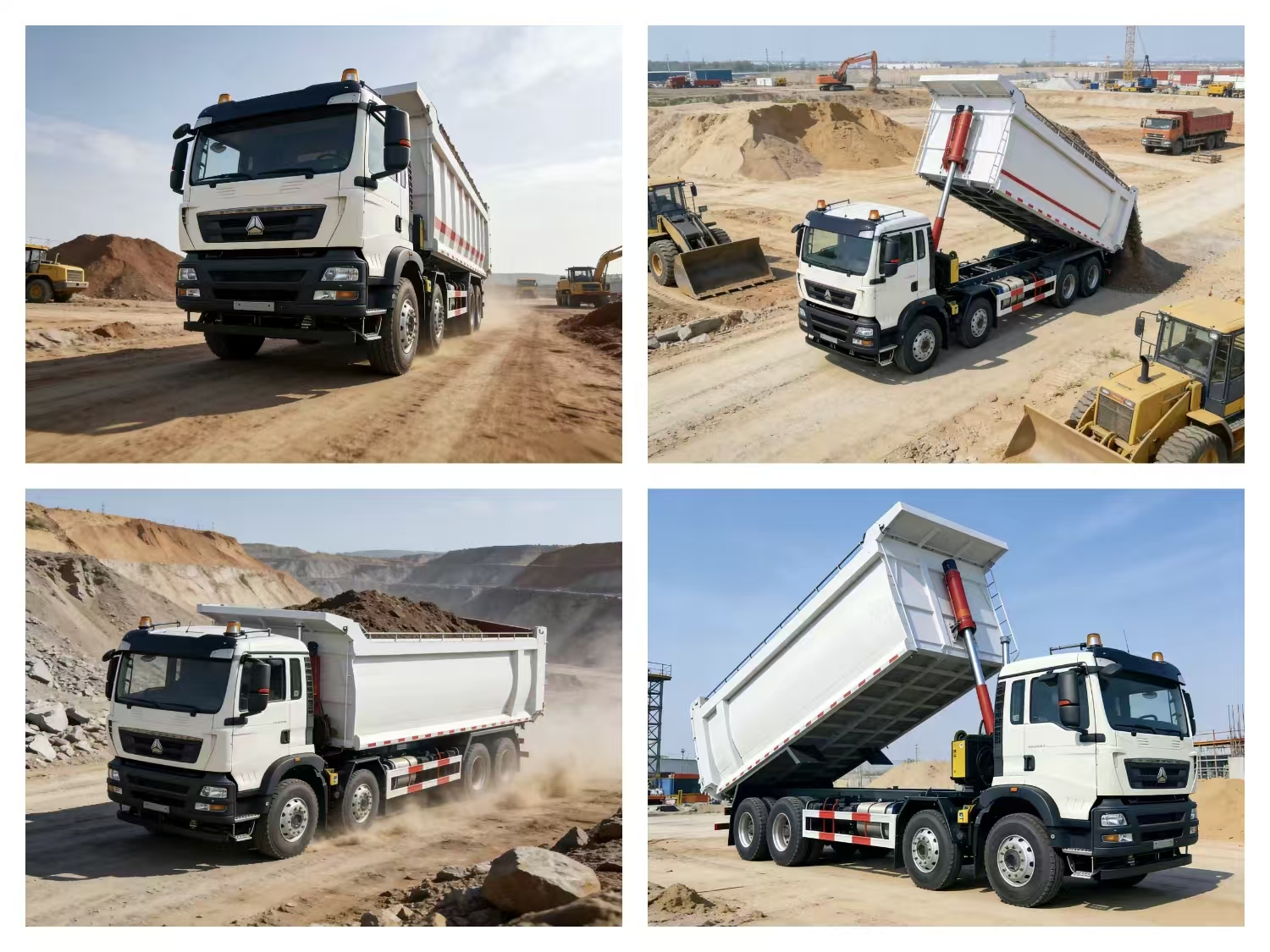

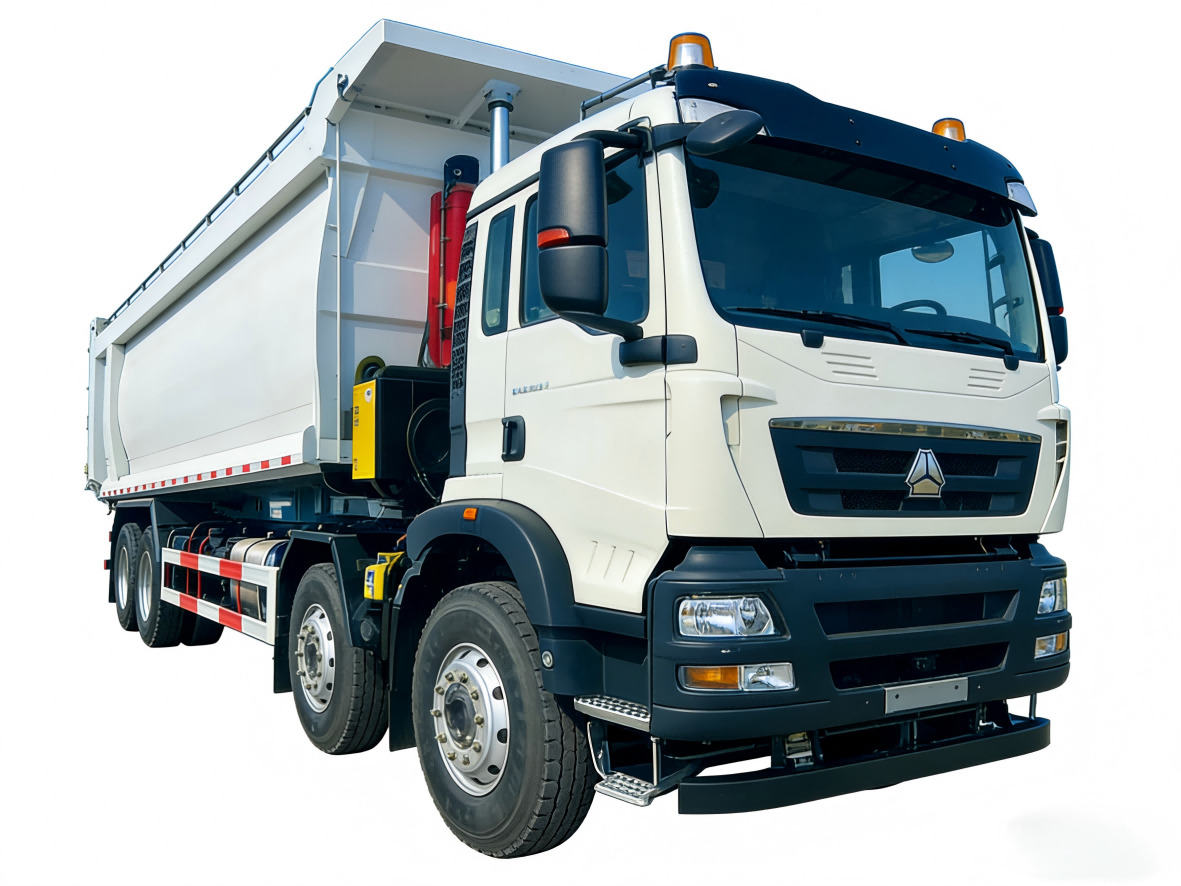

| Model | SINOTRUK HOWO-TX 8×4 Dumper |
| Driving Type | 8×4 |
| Wheelbase | 5425 mm |
| Engine | MC13.540-30, Euro III, with EVB |
| Transmission | HW25712XAC, 12 Forward & 2 Reverse, with Retarder |
| Cab | TX-F, with Air Conditioner and Safety Belts |
| Steering | Recirculating-ball Hydraulic Boosting, Ratio: 22.2–26.2 |
| Frame | 8+8+8 / 316 |
| Front Axle | VGD95 (9.5 Ton), Drum Braking |
| Rear Axle | MCP23ZG Double Drive Axle, Drum Braking (Ratio: 5.92) |
| Tires | 12.00R24 Mining Pattern Tubeless |
| Superstructure | 9200 × 2500 × 2300 mm, U-Shape Box |
| Box Plate Thickness | Bottom Plate: 8 mm / Side Plate: 6 mm |
| Lifting System | HYVA Front Lifting System |
| Color | Optional |
| Standard Configuration | ABS, Parker Fuel Coarse Filter, Reverse Buzzer, Double Side Warning Light, Intercooler Protector, Vehicle Front Under Protection, Front & Rear Stabilizer Bars |
| Other |
Factory Standard Specification |
